Ultimate Vapor Recovery System Gas Station Compliance Guide

Most states have decommissioned Stage II vapor recovery, but the compliance picture is far from settled. Operators still face Stage I requirements, decommissioning replacement mandates, and state-by-state variation that no single government portal covers completely.

This guide breaks down every vapor recovery system gas station operators need to understand: Stage I and Stage II system types, current state requirements, equipment components, the decommissioning process, maintenance practices, and the parts needed to stay compliant. Whether a station runs active Stage II or completed decommissioning years ago, the right equipment keeps it in compliance.

What Vapor Recovery System Gas Station Types Are Stage I and Stage II?

Stage I vapor recovery captures gasoline vapors during underground tank filling from delivery trucks. Stage II captures vapors during vehicle refueling at the dispenser nozzle.

Stage I operates on the delivery side of fuel handling. When a tanker truck fills an underground storage tank, the incoming fuel displaces vapor already in the tank. Without vapor recovery, that displaced gasoline vapor vents directly into the atmosphere. Stage I systems route displaced vapors back to the delivery truck through a vapor return line on the fill riser. The key components include drop tubes with vapor recovery adapters and pressure/vacuum (P/V) vent valves mounted on tank risers.

Stage I remains universally required in ozone nonattainment areas, regardless of Stage II status. Many operators incorrectly assume that decommissioning Stage II means dropping all vapor recovery. It does not. Stage I is a separate mandate that stays in place.

Stage II operates on the refueling side. When a customer fills a vehicle, gasoline vapor is displaced from the vehicle's fuel tank. Stage II systems capture that vapor at the nozzle and return it to the underground storage tank. Three system types handle this differently:

• Balance systems (passive): The bellows boot on the nozzle seals against the vehicle fill pipe, creating a closed loop. Pressure differential pushes displaced vapor back into the underground tank through a coaxial hose. No moving parts, no electricity required.
• Vacuum-assist systems (active): An electric pump at the dispenser actively pulls vapor back through the coaxial hose to the underground tank. These are the most common type in newer installations and offer more consistent vapor capture rates.
• Aspirator-assist systems: Fuel flow through a venturi fitting creates suction that draws vapor back to the tank. A hybrid approach that uses the energy of flowing fuel rather than a separate electric pump.

Which States Still Require Stage II Vapor Recovery?

Most states have decommissioned Stage II vapor recovery since EPA's ORVR compatibility ruling, but California, Connecticut, and several others still mandate active systems.

The EPA allowed Stage II decommissioning because Onboard Refueling Vapor Recovery (ORVR), built into vehicles manufactured after 2006, captures vapors at the vehicle itself. According to the EPA's ORVR program guidance, running ORVR and Stage II simultaneously can actually cause interference: the vehicle's ORVR system and the station's Stage II system compete for the same vapors, creating excess air intake that reduces overall capture effectiveness.

States with active Stage II requirements:

• California (CARB vapor recovery program, the strictest in the country)
• Connecticut (Department of Energy and Environmental Protection)
• Delaware (Department of Natural Resources and Environmental Control)
• Maryland (Department of the Environment)
• Nevada (Clark County and Washoe County only, not statewide)

States that decommissioned with replacement requirements: A significant number of states that dropped their Stage II mandates still require CARB-certified replacement equipment when stations remove active systems. Operators who simply disconnect the vapor recovery hardware without installing compliant replacement nozzles and hoses face violations, even though the state no longer requires active vapor capture.

States with no Stage II requirement: Nineteen or more states never implemented Stage II or have removed the requirement entirely with no equipment replacement mandates. Stage I requirements still apply in ozone nonattainment areas within these states.

Regulations change. Operators should always verify current requirements with their state environmental agency or local air quality management district before making equipment decisions.

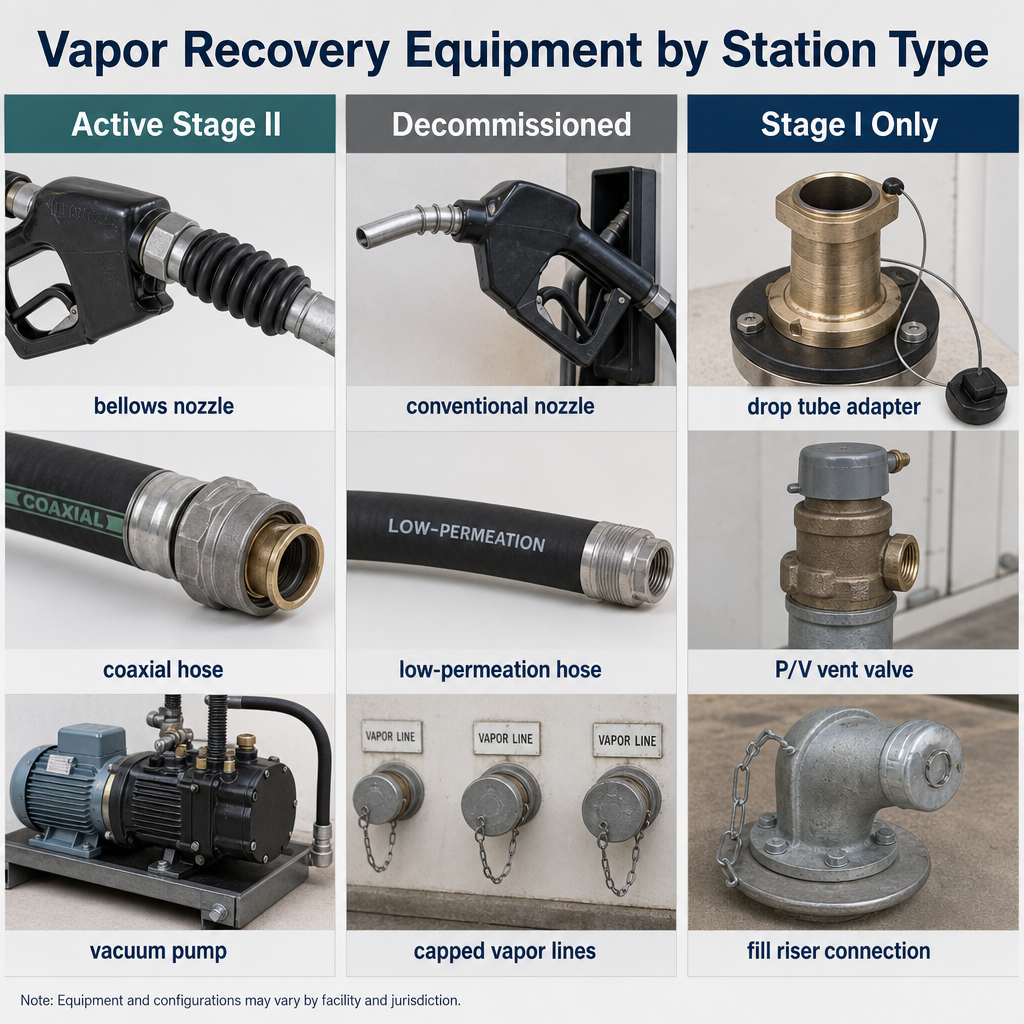

What Equipment Do Vapor Recovery Systems Use?

Vapor recovery systems use bellows nozzles, coaxial hoses, vapor return piping, vacuum pumps, pressure/vacuum vent valves, drop tube adapters, swivels, and fittings.

Each component serves a specific function in the vapor capture chain. Understanding what each part does helps operators identify wear, plan replacements, and source the correct components.

• Bellows/boot nozzles: A rubber bellows boot surrounds the nozzle spout and seals against the vehicle fill pipe during refueling. This seal captures displaced vapor at the source. The bellows boot is the most visible wear component in the system, cracking and tearing with regular use. Allied's nozzle guide covers selection details for both bellows and conventional types.

• Coaxial hoses: A hose-within-a-hose design where the inner line carries liquid fuel and the outer annular space returns vapor. Standard on all active Stage II dispensers. When the inner lining cracks, vapor escapes between layers and the system fails pressure testing. Allied carries both vapor recovery and non-vapor recovery hoses from VST (Vapor Systems Technologies).

• Vapor return piping: Underground piping routed from each dispenser back to the storage tank. Carries recovered vapor for re-condensation. Not a field-replaceable item, but integrity matters during annual tank testing.

• Vacuum pumps and aspirators: Active components in vacuum-assist and aspirator-assist systems. Electric vacuum pumps typically last 3 to 5 years depending on station throughput. Aspirator venturi fittings have fewer moving parts but require consistent fuel flow to function.

• Pressure/vacuum (P/V) vent valves: Mounted on tank risers for Stage I compliance. These valves allow the tank to breathe during temperature changes while preventing excess vapor release. A stuck P/V valve can over-pressurize or create vacuum conditions in the storage tank.

• Drop tubes with vapor recovery adapters: Stage I fill connection components. The drop tube extends to the bottom of the underground tank; the adapter connects to the delivery truck's vapor return line.

• Swivels and breakaway fittings: Vapor-tight connections at multiple points in the dispenser assembly. A seized swivel prevents hose rotation, causes kinking, and is a common source of vapor leaks flagged during inspections.

What Happens When You Decommission Stage II?

Decommissioning Stage II requires replacing bellows nozzles with CARB-certified conventional nozzles, swapping coaxial hoses for low-permeation hoses, and capping vapor return lines.

The most common compliance mistake operators make is treating decommissioning as simple removal. Disconnecting the old equipment without installing compliant replacements creates a violation, even in states that no longer require active Stage II. The decommissioning standard is the replacement standard.

Required steps for a compliant decommissioning:

1. Install CARB-certified enhanced conventional nozzles. These replace bellows nozzles and meet emission standards without the vapor capture boot. The nozzle must carry a current CARB Executive Order number.
2. Replace coaxial hoses with low-permeation hoses. Single-wall construction, but engineered to minimize gasoline permeation through the hose wall. Standard fuel hoses do not meet this specification.
3. Cap all vapor return lines. Every vapor return pipe at the dispenser and at the tank must be properly capped. Improper capping causes fugitive emissions and triggers inspection failures.
4. Update P/V vent valve configuration. Removing the vapor return path changes the tank's pressure dynamics. Vent valve settings may need adjustment to accommodate the new configuration.

Some states require formal notification to the air quality district before decommissioning begins. California's CARB program requires contractor certification and post-decommissioning verification testing. Other states accept a simpler notification with documentation that CARB-certified replacement equipment was installed.

Operators sourcing decommissioning parts can find CARB-certified nozzles and low-permeation hoses through Allied's filters, hoses, and nozzles catalog.

How Do You Maintain Vapor Recovery Equipment?

Maintaining vapor recovery equipment requires regular inspection of hoses, nozzles, and vent valves, with testing intervals set by the local air quality district.

Active Stage II Maintenance

Testing frequency varies by jurisdiction. CARB requires vapor recovery system testing at minimum every 5 years, with some California air districts mandating annual inspections. Common test protocols include pressure decay, dynamic backpressure, and liquid blockage checks.

The most frequent failure modes on active systems include:

• Worn bellows boots: Cracking and tearing at the seal point, allowing vapor to escape during refueling
• Cracked coaxial hose inner lining: Allows vapor to migrate between layers, producing false readings on pressure tests
• Failed vacuum pump: Motor burnout or diaphragm tear in vacuum-assist systems, reducing vapor capture rate to zero
• Seized swivels: Prevent hose rotation, cause kinking, and create leak points at the connection

When vapor return rates drop, operators should check for hose kinks at the dispenser hookup, debris blocking the vapor path in the coaxial annulus, and vacuum pump pressure readings below specification. Allied's hose replacement guide covers the full swap procedure.

Stage I Maintenance (All Stations)

Stage I components need attention during every fuel delivery. P/V valves should be inspected for sticking or corrosion. Drop tube integrity checks identify corrosion at the tube bottom that can compromise the vapor seal. Underground piping integrity is typically verified during annual tank compliance testing.

What Vapor Recovery System Parts Do Gas Station Operators Need?

Vapor recovery compliance requires hoses, CARB-certified nozzles, P/V vent valves, swivels, and breakaway fittings matched to the station's system type and regulatory status.

The table below maps each part category to its application, showing when it is required and how often it typically needs replacement. Allied Electronics stocks all of these components through the parts superstore, with 57,455+ petroleum parts available online.

For parts not listed in the online catalog, operators can submit a part request with manufacturer and model details. Allied's team locates hard-to-find vapor recovery components across its supplier network.

Frequently Asked Questions About Vapor Recovery

These common vapor recovery questions cover station requirements, system differences, decommissioning parts, coaxial hoses, and testing schedules.

Conclusion

Vapor recovery compliance varies by state, but the equipment requirements follow a consistent pattern. Stage I is non-negotiable in ozone nonattainment areas. Stage II is either active (with bellows nozzles, coaxial hoses, and vacuum hardware) or decommissioned (with CARB-certified conventional nozzles, low-permeation hoses, and capped vapor lines). Either way, the right parts keep a station in compliance and out of violation.

Allied Electronics carries vapor recovery hoses, CARB-certified nozzles, P/V vent valves, swivels, breakaway fittings, and drop tube adapters for every station configuration. For parts not listed online, the part request form connects operators with Allied's team to source hard-to-find vapor recovery components.
