Ultimate Fuel Dispenser Nozzle Guide for Petroleum Operators

A dripping fuel dispenser nozzle wastes fuel, triggers EPA citations, and takes lanes offline. For truck stops running 16+ dispensers, that cost compounds daily.

Most operators replace nozzles reactively, grabbing whatever model shipped last time without evaluating fuel compatibility, flow requirements, or state regulations. That approach creates compliance gaps and performance mismatches. This guide covers every nozzle type used in North American fueling, compares the three major brands side by side, walks through regulatory requirements, and provides a step-by-step replacement procedure. Allied Electronics stocks OPW, Husky, Catlow, and Morrison nozzles across gasoline, diesel, DEF, and E85 applications through our filters, hoses, and nozzles catalog.

What Types of Fuel Dispenser Nozzles Exist?

Fuel dispenser nozzles fall into five main categories: standard gasoline, vapor recovery (Stage II), high-flow diesel, DEF (stainless steel), and E85-compatible models.

Standard gasoline nozzles use a 3/4-inch NPT inlet and deliver 5-10 GPM. These are the workhorses at retail gas stations across North America, handling unleaded regular, mid-grade, and premium.

Vapor recovery nozzles incorporate a bellows boot or balance system that captures fuel vapors during dispensing. California (CARB), Connecticut, and several other states still mandate Stage II vapor recovery equipment at retail stations, even though the federal EPA requirement ended in 2012. These nozzles look and handle differently from standard units because of the integrated vapor return path.

High-flow diesel nozzles step up to a 1-inch NPT inlet and deliver 15-40 GPM. Truck stops and fleet fueling operations need that higher flow rate. A standard 3/4-inch gasoline nozzle at 8 GPM would take over 15 minutes to fill a 125-gallon saddle tank. A 1-inch diesel nozzle at 25 GPM cuts that to five minutes.

DEF dispensing nozzles must be constructed from stainless steel per ISO 22241. Diesel exhaust fluid (a 32.5% urea solution) corrodes brass and aluminum on contact. DEF nozzles also use a smaller spout diameter to prevent misfueling into diesel tanks.

E85-compatible nozzles require ethanol-resistant seals and gaskets. Standard gasoline nozzle seals degrade when exposed to high-ethanol blends, causing leaks within months. Always verify E85 compatibility on the nozzle spec sheet before installation.

All modern fuel dispenser nozzles include an automatic shut-off mechanism. A small sensing port near the spout tip detects rising fuel via a venturi effect. When fuel blocks the port, the resulting pressure differential trips a diaphragm that releases the handle latch. When this mechanism fails, the nozzle drips or overflows, which is the most common sign it needs replacement.

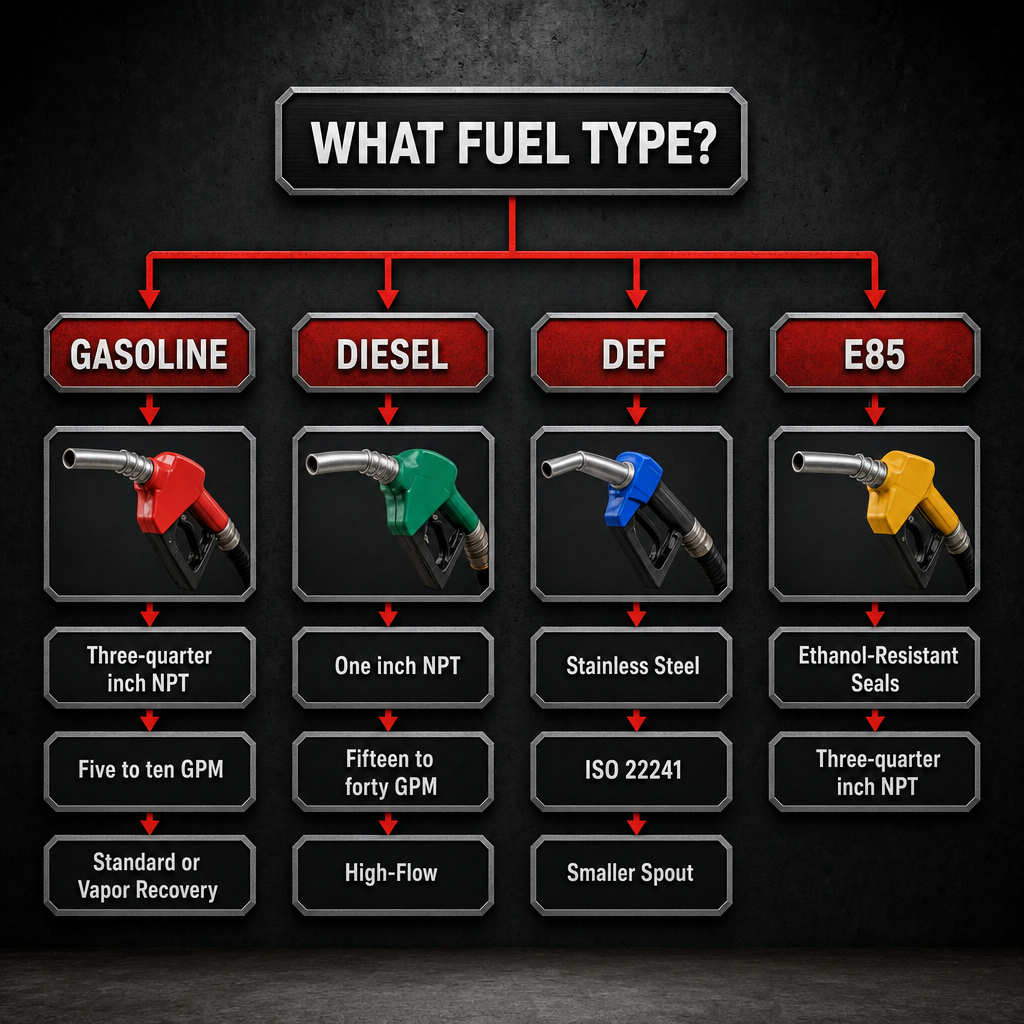

How Do You Choose the Right Fuel Dispenser Nozzle for Your Station?

Choose a fuel dispenser nozzle based on four factors: fuel type, dispenser brand compatibility, thread sizing (3/4-inch vs. 1-inch), and required flow rate.

Fuel type dictates material and seal compatibility. Gasoline nozzles use standard brass or aluminum construction. Diesel nozzles use the same materials but with a 1-inch inlet for high-flow applications. DEF nozzles require stainless steel (no exceptions). E85 nozzles need ethanol-resistant elastomer seals.

Dispenser brand compatibility matters less than you'd expect. Gilbarco Encore, Wayne Ovation, and Tokheim dispensers all use standard NPT threads on the hose swivel connection. Verify whether your application calls for 3/4" NPT (gasoline and standard diesel) or 1" NPT (high-flow diesel). The nozzle itself is brand-agnostic at the thread level.

Flow rate requirements depend on your customer mix. Retail gasoline stations typically need 5-10 GPM. That's adequate for passenger vehicles filling 12-18 gallon tanks. Truck stops and travel plazas serving commercial diesel need 15-40 GPM to fill 100-200 gallon saddle tanks in under 10 minutes. Undersized nozzles create bottlenecks at high-volume lanes and cost revenue per hour.

State regulations add a compliance filter. Before ordering, confirm whether your state requires vapor recovery equipment. CARB-certified nozzles are mandatory in California. Several Northeast states maintain Stage II requirements. A non-compliant nozzle installed during a routine swap can trigger a violation during the next inspection.

Browse Allied's full selection of nozzles, hoses, and filters on our filters, hoses, and nozzles category page, or submit a part request if you need help finding a specific model.

What Regulations Apply to Fuel Dispensing Nozzles?

Three standards govern fuel dispenser nozzles: NFPA 30A for safety, EPA Stage II for vapor recovery, and UL listing for product certification.

The NFPA 30A standard (Code for Motor Fuel Dispensing Facilities) is what inspectors reference during site evaluations. NFPA 30A requires automatic shut-off nozzles at every retail dispensing point, UL-listed equipment for the specific fuel type, and proper electrical grounding at dispensing locations. It requires automatic shut-off nozzles at every retail dispensing point, UL-listed equipment for the specific fuel type, and proper electrical grounding at dispensing locations.

UL listing is non-negotiable. Every fuel dispenser nozzle installed at a retail station must carry a UL listing for the fuel type it dispenses. Installing a non-UL-listed nozzle, even if it physically fits, creates a code violation and an insurance liability.

EPA Stage II vapor recovery is where confusion runs thickest. The federal mandate was decommissioned in 2012 for areas where Onboard Refueling Vapor Recovery (ORVR) vehicles dominate the fleet. But state mandates persist independently. California's CARB maintains its own Executive Order list of approved vapor recovery nozzles. Connecticut, New York, and several other states retain active Stage II requirements. Check your state environmental agency's current rule before ordering replacements. Installing a standard nozzle where a vapor recovery unit is required results in a compliance citation.

Misfueling prevention is built into the nozzle design itself. Diesel nozzle spouts measure 15/16-inch diameter, which physically cannot fit into the standard 13/16-inch gasoline vehicle filler neck. This size difference prevents diesel from being pumped into gasoline vehicles. It's an industry-wide design standard across all major nozzle brands, not a feature exclusive to any single manufacturer.

OPW vs Husky vs Catlow: Which Fuel Dispenser Nozzle Brand Fits Your Operation?

OPW leads in gasoline nozzle variety and rebuild kits, Husky dominates diesel and truck stop applications, and Catlow offers budget-friendly options for standard retail fueling.

OPW (Dover Fueling Solutions)

OPW sets the industry standard for gasoline nozzles. Their model lineup includes the 11A (standard prepay), 11B (balance-style vapor recovery), 7H (high-volume), and 66CL (cold-weather). OPW also carries a full CARB-certified vapor recovery lineup for California compliance. Rebuild kits are widely available, typically $15-$40, which keeps long-term maintenance costs manageable. If your station primarily dispenses gasoline, OPW is the default choice.

Husky

Husky nozzles are the go-to for truck stops and fleet fueling operations. Their high-flow diesel lineup handles 1-inch inlets at 25-40 GPM. Husky also manufactures stainless steel DEF nozzles that meet ISO 22241 requirements. The brand is built for heavy-use environments where durability under constant cycling matters more than upfront price. If your site serves commercial diesel traffic, Husky belongs on the shortlist.

Catlow

Catlow fills the budget tier for standard retail gasoline applications. Their nozzle lineup is narrower than OPW's, with fewer model variants and limited vapor recovery options. But for lower-volume C-stores and independent stations where basic gasoline dispensing is the primary need, Catlow delivers reliable performance at a lower price point. Rebuild kit availability is more limited than OPW.

Allied stocks all three brands. Browse our parts superstore for current availability, or request a part if you need a specific model number.

When Should You Replace vs. Repair a Fuel Dispenser Nozzle?

Replace a fuel dispenser nozzle when the spout is physically damaged, the shut-off mechanism fails repeatedly, or the rebuild cost exceeds 60% of a new unit's price.

Warning Signs That Mean Replacement

These symptoms indicate the nozzle has passed its serviceable life:

• Persistent dripping after the handle is released and the shut-off engages
• Slow or inconsistent auto shut-off, causing overfills or customer splashback
• Handle stiffness or binding that requires excessive force to operate
• Visible spout damage: cracks, dents, or corrosion on the spout tip
• Compliance failure during an inspection (non-UL-listed unit, failed vapor recovery test)

Any of these on their own justifies pulling the nozzle off the dispenser. Two or more together makes rebuild impractical.

When Rebuild Makes Sense

If the nozzle body is sound but internal seals or the diaphragm are worn, a rebuild kit restores function at a fraction of replacement cost. OPW rebuild kits typically run $15-$40. A new nozzle costs $80-$150 depending on model and fuel type. If the rebuild kit is less than 60% of the new unit price and the body passes visual inspection, rebuild first.

The Downtime Math for Truck Stops

Here's where replacement costs look different for high-volume sites. A single out-of-service diesel lane at a busy truck stop can cost $200-$500 per day in lost fuel sales. At those rates, the $120 cost of a new Husky high-flow diesel nozzle pays for itself in a few hours. Don't let a $30 rebuild kit turn into a three-day parts-on-backorder situation when same-day replacement gets the lane back online.

For related diagnostics, see our fuel dispenser troubleshooting guide.

How Do You Replace a Fuel Dispenser Nozzle?

Replacing a fuel dispenser nozzle requires lockout-tagout, disconnecting the swivel, inspecting the o-ring and threads, installing the new nozzle, and performing a leak test before returning the lane to service.

Follow these steps in order. Never work on a pressurized fuel line.

1. Lockout-tagout (LOTO). De-energize the dispenser at the breaker. Lock out the breaker and post a "Do Not Use" sign on the dispenser face. Verify zero energy before proceeding.

2. Disconnect from swivel. Unscrew the nozzle from the hose swivel fitting using the correct wrench size. Support the hose weight while removing to prevent strain on the swivel joint.

3. Inspect the o-ring and swivel threads. Check the swivel o-ring for cracking, swelling, or deformation. Replace if worn. Inspect the swivel threads for cross-threading or corrosion. A damaged swivel needs replacement before the new nozzle goes on.

4. Install new nozzle. Hand-thread the new nozzle onto the swivel to verify alignment. Then tighten with a wrench to the manufacturer's torque specification. Over-torquing cracks the inlet fitting.

5. Leak test. Re-energize the dispenser and run a test transaction. Watch the swivel connection for drips during dispensing and for 30 seconds after the handle is released.

6. Vapor recovery boot (if applicable). If the station uses Stage II recovery, replace the bellows boot at the same time as the nozzle. Cracked or torn boots defeat the vapor capture system and cause inspection failures.

7. Return to service. Remove LOTO hardware, update the maintenance log with the new nozzle model and date, and verify the auto shut-off engages correctly.

For filter replacement procedures that often pair with nozzle swaps, see our fuel dispenser filter replacement guide.

Frequently Asked Questions About Fuel Dispenser Nozzles

Below are practical answers to the most common questions petroleum operators and technicians ask about fuel dispenser nozzle selection, compatibility, replacement timing, and maintenance. These questions address real-world concerns about flow rates, state regulations, fuel type compatibility, nozzle longevity, and misfueling prevention.

Conclusion

Choosing the right fuel dispenser nozzle requires matching four critical variables: fuel type compatibility, thread size standards, flow rate requirements, and state compliance mandates. This guide has covered every nozzle type, regulatory standard, brand comparison, and replacement procedure you need. Here's the summary:

• Gasoline stations: 3/4-inch NPT, 5-10 GPM, OPW for variety or Catlow for budget
• Truck stops and fleet diesel: 1-inch NPT, 15-40 GPM, Husky for durability
• DEF dispensing: Stainless steel only (ISO 22241), smaller spout for misfueling prevention
• Vapor recovery states: Verify CARB or state Executive Order listing before ordering

Replace nozzles when spout damage, repeated shut-off failure, or inspection flags appear. For truck stops, the cost of a single offline diesel lane almost always exceeds the cost of a new nozzle.

Allied Electronics carries OPW, Husky, Catlow, and Morrison nozzles for every fuel type and application. Browse our nozzle inventory, visit our parts superstore with 57,455+ petroleum SKUs, or find a local installer through our dealer and distributor network.
