Ultimate Fuel Dispenser Hose Replacement Guide for Petroleum Operators

A cracked fuel dispenser hose can shut down a fueling position for hours and leak regulated product onto the forecourt. If volume exceeds 25 gallons, that spill becomes reportable.

Most operators treat hoses as set-and-forget parts. But internal degradation is invisible until failure, and no single guide explains UL 330 certification, vapor recovery selection, and volume-based replacement schedules for North American operators. This article fills that gap.

Here's what this guide covers:

• Hose types by fuel, diameter, and vapor recovery configuration
• What UL 330 certification means in plain language
• Volume-tiered replacement schedules (including truck stops)
• Vapor recovery hose selection and EPA compliance
• Daily and monthly inspection checklists
• Step-by-step fuel dispenser hose replacement procedure
• E85 and biodiesel hose compatibility

Types of Fuel Dispenser Hose Replacement: Vapor Recovery vs Non-Vapor

Fuel dispenser hoses fall into two main categories, vapor recovery and non-vapor recovery, with further distinctions by fuel type, diameter, and material construction.

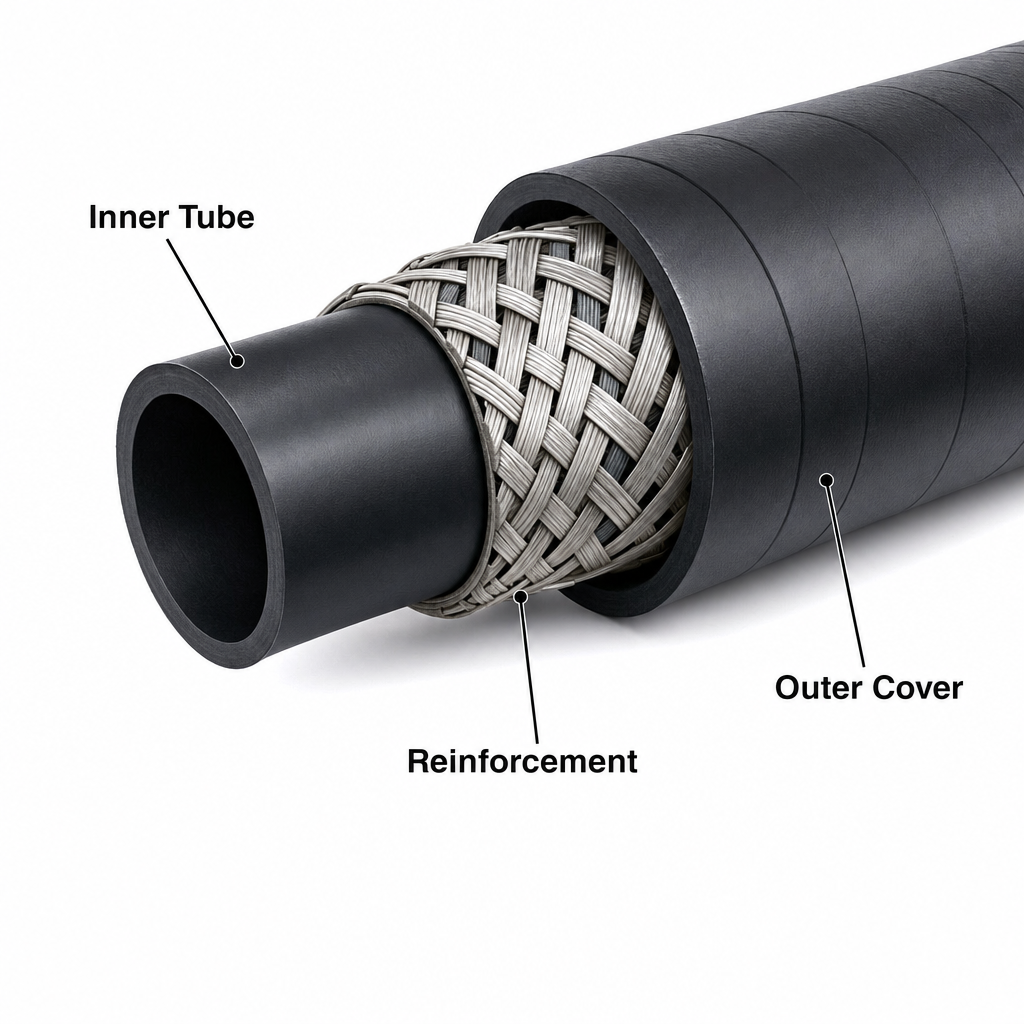

Every fuel dispenser hose is built from three layers. The inner tube is nitrile synthetic rubber that contacts fuel directly. Around it sits a reinforcement layer of braided steel wire or high-strength synthetic fiber that contains internal pressure. The outer cover is another layer of nitrile rubber that protects against abrasion, weather, and UV exposure.

Vapor recovery hoses have a coaxial design with two concentric passages: an inner passage for liquid fuel and an outer passage for vapor return. Non-vapor recovery hoses have a single passage for fuel only. The physical difference is visible at the coupling, where vapor recovery hoses have a second connection port.

Hoses also vary by diameter:

• 5/8 inch: compact automotive dispensers with lower flow rates
• 3/4 inch: standard automotive and light-truck dispensers (the most common size)
• 1 inch: high-flow truck stop and commercial diesel islands

Allied Electronics stocks both vapor recovery and non-vapor recovery hoses from VST (Vapor Systems Technologies), available by diameter and length.

What Does UL 330 Mean and Why Does It Matter?

UL 330 is the North American safety standard for fuel dispenser hose assemblies, certifying that the complete assembly meets fire resistance, pressure integrity, and chemical compatibility requirements.

The current edition is ANSI/CAN/UL 330:2021. It covers complete hose assemblies, meaning the hose plus its permanently attached fittings. A bare hose length without factory-crimped couplings is not UL 330 listed.

What UL 330 Tests

The certification process subjects each assembly to:

• Burst pressure testing to verify the hose holds well above working pressure
• Flame resistance to confirm the assembly won't propagate fire along its length
• Fuel permeation to measure how much fuel vapor escapes through the hose wall
• Coupling pull-off resistance to ensure fittings stay attached under mechanical stress
• Low-temperature flexibility to confirm the hose doesn't crack in cold weather
• Electrical conductivity to verify the assembly can dissipate static charge and prevent spark ignition

What Happens Without UL 330 Listing

Installing a non-UL-listed hose assembly carries real consequences. The Authority Having Jurisdiction (AHJ), typically the fire marshal, can order fueling positions shut down until compliant assemblies are installed. Insurance carriers may deny fire or spill claims if non-listed equipment was in use. And during routine inspections, a non-listed hose assembly is an automatic citation.

How to Verify UL 330 Listing

Operators can verify listing in three steps:

1. Check the coupling. Look for the UL mark stamped or printed on the hose fitting.
2. Search the UL Product iQ database. Enter the manufacturer name and confirm the specific assembly model is listed.
3. Confirm fuel type coverage. A UL 330 listing for gasoline does not automatically cover E85 or diesel. Verify the listing matches the fuel dispensed.

How Often Should You Replace Fuel Dispenser Hoses?

Replacement frequency depends on fueling volume: every 2 years for high-volume truck stops, every 5 years for average stations, and every 5 to 8 years for low-volume sites.

Per Husky Corporation guidance cited by PMMIC (Petroleum Marketers & Convenience Stores of Iowa), the recommended fuel hose replacement schedule breaks down by throughput:

• High volume (truck stops, travel plazas): replace every 2 years or less
• Average volume (standard gas stations): replace every 5 years
• Low volume (marinas, small rural stations): replace every 5 to 8 years

The "Remove-by Date" Rule

Regardless of volume, manufacturers recommend a maximum service life of 5 years and 3 months from the date of manufacture. This is the absolute ceiling. The manufacture date is stamped on the hose coupling, typically as a month and year code.

Even a hose that looks perfect on the outside may have internal degradation that's invisible without disassembly. The inner tube can swell, soften, or delaminate from the reinforcement layer while the outer cover shows no visible damage.

Truck Stop Considerations

High-volume diesel islands at truck stops and travel plazas experience significantly more mechanical stress than standard automotive positions. Heavy nozzles, frequent use, and driver handling habits all accelerate wear on hose connections. Operators running 24/7 truck fueling should consider annual hose inspections at diesel positions, even within the 2-year replacement window.

NFPA 30A (Code for Motor Fuel Dispensing Facilities and Repair Garages) requires facilities to maintain all dispensing equipment per manufacturer recommendations and applicable codes. PEI RP500 (Recommended Practices for Inspection and Maintenance of Motor Fuel Dispensing Equipment) reinforces these schedules with specific inspection procedures.

How Do You Select Vapor Recovery Hoses for EPA Compliance?

Vapor recovery hose selection depends on state regulations. Sites in California and several Northeast states still require Stage II vapor recovery systems with compatible coaxial hoses.

Stage I vs Stage II

Two separate vapor recovery stages exist at fueling sites:

• Stage I captures vapors during fuel delivery from the tanker truck to the underground storage tank (UST). All fueling sites require Stage I.
• Stage II captures vapors during vehicle fueling, pulling displaced vapors from the vehicle tank back through the dispenser. Only some states still mandate Stage II.

Which States Still Require Stage II?

In 2012, the EPA issued a widespread in-use determination acknowledging that most vehicles manufactured since 2006 have Onboard Refueling Vapor Recovery (ORVR) systems. This allowed states to decommission Stage II requirements. However, state rules override federal guidance.

California (CARB) still requires Enhanced Vapor Recovery (EVR) at most retail stations. Several counties in New York, Connecticut, and a handful of other jurisdictions maintain active Stage II mandates. Check with your state environmental agency or local AHJ before assuming your site can decommission.

Coaxial vs Balance Systems

Coaxial hoses use concentric passages, with fuel flowing through the inner tube and vapors returning through the outer annular space. This is the most common vapor recovery hose design at retail stations.

Balance systems use a completely separate vapor return hose running alongside the fuel hose. These are less common at modern retail sites but still found at some older installations.

If dispensers currently have coaxial hoses, replacing them with another vapor recovery hose is required unless the site has documented Stage II decommissioning approval from the state. Allied stocks both vapor recovery and non-vapor recovery hoses for immediate availability.

How Do You Inspect Fuel Dispenser Hoses?

Inspect hoses daily for visible cracking, bulging, soft spots, and leaking at fittings. Run a hands-on monthly check for internal separation and coupling integrity.

Catching a failing hose before it ruptures is significantly cheaper than cleaning up a spill, filing a reportable release, and shutting down a fueling position. Two inspection tiers handle this.

Daily Visual Checks (per PEI RP500): - Cracks, cuts, or abrasion on the outer cover - Bulges or soft spots (a sign that internal reinforcement has failed) - Leaks at the hose-to-swivel or hose-to-breakaway connections - Kinks or sharp bends that concentrate stress and weaken the assembly - Nozzle and hold-open latch operating correctly

Monthly Hands-On Checks: - Squeeze the hose along its full length, feeling for internal separation or air bubbles beneath the outer cover - Check coupling tightness at both ends (hand-tight is not sufficient; couplings should resist turning) - Verify the breakaway valve is clean, free of debris, and moves freely - Confirm the hose hangs without kinks when fully retracted - Check the manufacture date stamp on the coupling against the replacement schedule

For a complete maintenance checklist covering filters, nozzles, and other dispenser components, see Allied's guides on fuel dispenser filter replacement and fuel dispenser troubleshooting.

How Do You Replace a Fuel Dispenser Hose Assembly?

Replacing a fuel dispenser hose involves locking out the dispenser, draining fuel, disconnecting the old assembly, and installing the new one with proper torque and leak testing.

Follow these steps for a safe, code-compliant fuel dispenser hose replacement:

1. Lock Out / Tag Out (LOTO). Shut down the dispenser at the forecourt controller or POS console. Engage the emergency shutoff for that island. Tag the dispenser as out of service.

2. Drain residual fuel. Lower the hose to its lowest point and drain remaining fuel into an approved DOT container. Even a "dry" hose holds several ounces of product.

3. Disconnect the old assembly. Remove the breakaway at the nozzle end first, then disconnect the swivel fitting at the dispenser connection. Use proper wrenches, not pliers, to avoid damaging threads.

4. Inspect fittings. Before installing the new hose, check the swivel, breakaway, and dispenser connection for corrosion, thread damage, or worn O-rings. Replace any compromised components.

5. Install the new assembly. Connect the yellow-marked live end to the dispenser connection first. The yellow mark identifies the end that attaches to the pressurized fuel supply. Then attach the breakaway and nozzle at the customer end.

6. Torque connections. Tighten to the manufacturer's specified torque, typically 25 to 35 ft-lbs for NPT fittings. Always confirm with the hose assembly documentation. Over-torquing damages seals; under-torquing causes leaks.

7. Leak test. Reactivate the dispenser, run 1 to 2 gallons through the hose, and inspect every connection point for drips or weeping. Check both ends and any mid-hose couplings.

Safety Requirements

Stage spill containment materials (absorbent pads, drain covers) before starting the job. Ensure adequate ventilation; never replace hoses with the dispenser cabinet sealed. No open flames or ignition sources within 20 feet of the work area.

What About E85 and Biodiesel Hose Compatibility?

E85 requires hoses with Viton or fluoroelastomer inner tubes because standard nitrile rubber degrades when exposed to ethanol concentrations above 15 percent.

Standard nitrile inner tubes handle gasoline (up to E10) and conventional diesel without issues. But higher ethanol blends attack nitrile over time. The inner tube swells, softens, and eventually delaminates from the reinforcement layer. This failure mode is invisible from the outside until the hose ruptures.

E85 Hose Requirements

Viton (a fluoroelastomer) resists ethanol, methanol, and most biofuel blends. When sourcing hoses for an E85 dispenser, look for assemblies that are explicitly UL 330 listed for E85/ethanol. A gasoline-rated hose used on an E85 position will degrade faster than the standard replacement schedule predicts.

Biodiesel Compatibility

B5 (5% biodiesel blend) is compatible with standard nitrile hoses. B20 and higher blends may degrade nitrile over extended exposure, particularly in warmer climates where chemical activity increases. Check the hose manufacturer's compatibility chart for blends above B5.

Identifying Current Hose Ratings

The fuel type rating is printed or stamped on the hose coupling. If markings have worn away, the safest approach is to replace the assembly with one rated for the fuel currently being dispensed at that position. Allied's filters, hoses, and nozzles category page carries hoses for all standard fuel types.

Frequently Asked Questions About Fuel Dispenser Hoses

These answers address the most common questions petroleum operators ask about fuel dispenser hose selection, replacement timing, and regulatory compliance requirements.

Conclusion

Fuel dispenser hose replacement requires following volume-based schedules, using UL 330 listed assemblies matched to fuel type, and conducting regular inspections. The key principles are:

• Replace by schedule or date, whichever comes first. High-volume truck stops every 2 years, average stations every 5 years, low-volume sites every 5 to 8 years, with a hard ceiling of 5 years and 3 months from manufacture.
• Always install UL 330 listed assemblies. Non-listed hoses create fire-code violations, insurance gaps, and inspection citations.
• Match the hose to the fuel. Gasoline, diesel, and E85 each have different material compatibility requirements. Verify the UL 330 listing covers the specific fuel.
• Verify vapor recovery requirements before ordering. State regulations vary. Installing the wrong type wastes money and may trigger compliance issues.
• Inspect daily and monthly. Catching a soft spot or hairline crack today prevents a reportable spill tomorrow.

Check the manufacture date on current hose assemblies today. If any have passed the 5-year-3-month mark, it is time to order replacements.
