Ultimate Fuel Dispenser Circuit Board Diagnostic Guide

A single misdiagnosed fuel dispenser circuit board replacement can cost a fuel site $400 or more in unnecessary parts, plus hours of additional downtime while the correct board ships. Circuit boards are the most expensive components inside a dispenser, and they are also the most commonly misidentified failure point.

Search for help with a fuel dispenser circuit board problem and you'll run into two kinds of results: parts catalogs that list numbers but teach nothing, or vague advice written by people who've never opened a Gilbarco cabinet. Neither gets a tech closer to fixing the actual problem. This article fills in what's missing: symptom-to-board mapping, a voltage-first method for confirming which board failed, specific guidance for Gilbarco, Wayne, and Bennett dispensers, and a plain-English comparison of when rebuilt exchange boards beat buying OEM new.

What Does a Fuel Dispenser Circuit Board Actually Do?

A fuel dispenser circuit board authorizes transactions, processes payments, drives the display, and controls fuel flow. It is the dispenser's central brain.

Modern dispensers contain between three and six separate circuit boards, each responsible for a distinct subsystem. The main control board coordinates overall operation. A separate payment board (called a CRIND board in Gilbarco dispensers) handles card transactions. Driver boards convert low-voltage signals into high-voltage motor commands. Display boards manage the LCD screen, and interface boards handle communication with the forecourt controller or POS.

When any single board fails, the entire fueling position can go offline. At a busy travel plaza or truck stop, a downed dispenser can mean $200 to $500 or more per hour in lost fuel revenue. That urgency pushes many technicians to order the most expensive replacement first, but the wrong board means restocking fees and a second round of downtime.

What Are the Different Types of Fuel Dispenser Circuit Boards?

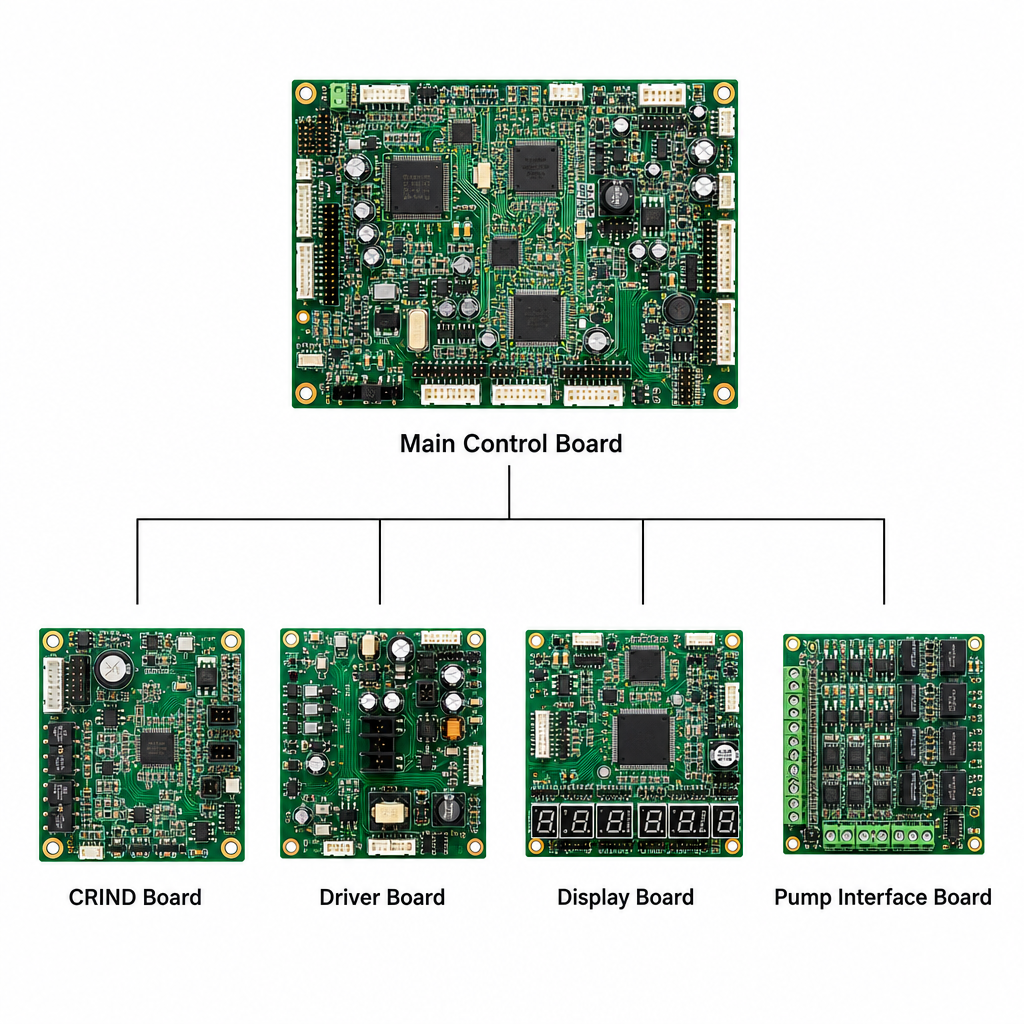

Five primary board types sit inside most fuel dispensers: main control, CRIND, driver, display, and pump interface boards, each with its own failure signature.

Main control board (MCB) is the boss. It runs the dispenser's firmware, keeps every other board in sync, and talks to the forecourt controller. If it dies, the entire dispenser goes dark: no screen, no comms, no fuel.

CRIND board (short for Customer Readable Interface Node Display) runs the outdoor payment terminal: card reader, PIN pad, receipt printer, and the screen customers actually see. You'll only find this board in Gilbarco Encore dispensers. When it goes bad, the card reader throws errors, the customer screen goes blank, or payments stop processing altogether. The confusing part? The pump motor and fuel flow may work fine, which makes it easy to chase the wrong problem.

Driver board sits between the brain and the muscle. It takes low-voltage control signals and converts them into the high-voltage commands that actually spin the pump motor and open valves. When a driver board goes bad, the motor won't start, fuel flow gets erratic, or the dispenser shuts off mid-transaction for no obvious reason.

Display board runs the LCD or LED panel showing gallons, price, and prompts. When it goes out, you'll see a blank screen, garbled characters, or segments that just aren't there. But here's the catch: a blank screen doesn't always mean a bad display board. A dead CRIND board or a flaky power supply creates the exact same symptom, so isolation testing matters before spending money on parts.

Pump interface board (PIB) is the translator between the dispenser and the site controller. If it fails, the console starts showing "pump offline" errors. Everything else in the cabinet works fine; the dispenser just can't talk to the building.

Symptom-to-Board Mapping

The following table maps the most common failure symptoms to the board most likely responsible. Always confirm with voltage checks and LED readings before ordering a replacement.

How Do You Diagnose a Fuel Dispenser Circuit Board Failure?

Start with voltage measurements at the power supply and board connectors. Electrical faults cause most symptoms that get chalked up to bad boards.

Following a structured, electrical-first approach keeps you from swapping out a $400 board when a $5 connector was the real culprit. Here's the sequence that works:

1. Verify power supply output. Set a multimeter to DC voltage and measure at the main board connector. Compare the reading to the OEM specification (typically 24VDC and 5VDC rails). If voltage is low, missing, or unstable, the power supply is the problem, not the board.
2. Read LED indicator status. Most boards have diagnostic LEDs. Solid green typically means power is good. A blinking pattern indicates a specific fault code. No LED activity at all, with correct input voltage present, points to a dead board.
3. Check error codes. Many dispensers log error codes accessible through the technician keypad interface. Document the code before resetting the unit. Gilbarco Encore technicians can reference the Encore error code guide for interpretation.
4. Inspect connectors and ribbon cables. Corrosion, loose pins, and heat-damaged connectors cause intermittent failures that look identical to board faults. Re-seat every connector before condemning a board. Look for green or white oxidation on pins, melted plastic housings, and cracked solder joints at board-level connectors.
5. Swap-test if available. If a known-good board is available from another fueling position at the same site, swap it into the suspect dispenser to confirm the diagnosis. This step eliminates the risk of ordering the wrong replacement. Allied's parts reference manuals can help identify the correct board for each model.

What Are the Key Circuit Boards in Gilbarco Encore and Advantage Dispensers?

Gilbarco Encore dispensers use a CRIND logic board for payment processing, a regulator board for power management, and separate monochrome or color display boards that are not interchangeable between models.

CRIND Logic Board

The CRIND logic board is the most commonly replaced Gilbarco circuit board. Part number M03651A002 serves monochrome Encore 300 units, while M03651A003 serves color-display Encore 500S and 700S models. These two versions are not interchangeable. Installing a monochrome board into a color unit produces a blank display with no error code, which makes the misdiagnosis appear to be a second board failure. Double-check which display type you're working with before placing that order. The Gilbarco dispenser parts guide covers model-specific details in more depth.

Regulator Board

The regulator board (T20306-G1) converts incoming AC power to the DC voltages that the CRIND and display boards need. Here's why it matters: a failed regulator looks exactly like a CRIND failure because both kill the customer-facing functions. But the regulator costs a fraction of what a CRIND board runs. Checking regulator output voltage first can save hundreds of dollars on a replacement that wasn't needed.

The Advantage (Legacy)

Gilbarco's older Advantage series runs a completely different board architecture than the Encore line. Finding OEM new main control boards for The Advantage gets harder every year as production has wound down. For these legacy dispensers, rebuilt/exchange boards are often the only practical sourcing path.

What Are the Key Circuit Boards in Wayne Ovation and Helix Dispensers?

Wayne's Ovation and Helix lines both run on the Jade board architecture, which packs more functions into fewer assemblies. Despite looking nearly identical, boards from these two platforms can't be swapped between them.

Wayne took a different design philosophy with the Jade platform. Instead of spreading functions across five or six boards like Gilbarco, Wayne packed processing, peripheral management, and communication into one main assembly. That's fewer boards to troubleshoot, which sounds great until the main board fails and takes down everything at once. For Wayne-specific part numbers and ordering, refer to the Wayne fuel dispenser parts guide.

Ovation vs Helix: do not swap. On the bench, Ovation and Helix boards look like twins. Same connectors, same form factor. Don't let that fool you. The firmware and hardware revisions are different enough that dropping an Ovation board into a Helix will cause comm faults or boot failures. Check the platform and model number stamped on the board before ordering any Wayne board replacement.

Driver board failures in Wayne dispensers usually show up as Error 1006 (motor fault), and the driver board gets blamed almost every time. Before pulling it, take two minutes to test motor windings for continuity and inspect the wiring harness. A shorted winding creates the exact same error code. Worse, if you install a fresh driver board without catching a shorted motor, you'll burn up that replacement too.

What Should Technicians Know About Bennett Dispenser Electronics?

Bennett 82D and 92D dispensers use different electronic architectures. The 82D relies on a separate communication board, while the 92D integrates communication functions directly into the main board.

The 82D series uses an older design with a standalone communication board that handles RS-422 signaling to the forecourt controller. If that comm board goes out, the console flags the pump as offline while the rest of the dispenser still works perfectly. It's also one of the cheaper boards in the cabinet, so it deserves a look before anyone blames the main control board.

The 92D series consolidates communication into the main control board. That simplifies troubleshooting (fewer boards to test) but it also means one dead board kills both processing and communication in a single shot. Bennett board replacements tend to be among the hardest to source as OEM new, making the rebuilt/exchange program the go-to sourcing channel for nearly every Bennett model still in the field.

When Should You Choose OEM New vs Rebuilt Exchange Circuit Boards?

Rebuilt exchange boards cost 40-60% less than OEM new, carry comparable warranties, and are the only practical sourcing option for many legacy fuel dispenser models where OEM production has ended.

Here's how the exchange works in practice: order the rebuilt board from Allied's parts superstore, install it in the dispenser, then ship your old board back within 30 days. That core return isn't just a formality; it feeds the pool of boards available for the next tech who needs one and brings the net cost down further. Allied carries rebuilt boards for Gilbarco, Wayne, and Bennett platforms as part of a catalog with 57,455+ petroleum parts.

When OEM new makes sense: current-production models still under manufacturer warranty, or PCI audit requirements that specify OEM-sourced components.

When rebuilt exchange makes sense: legacy models (The Advantage, early Encore, Bennett 82D) where OEM new is discontinued, multi-site replacements where cost adds up quickly, and routine maintenance where downtime cost far exceeds the incremental difference between new and rebuilt reliability.

What Safety Steps Are Required Before Opening a Dispenser Cabinet?

Always apply lockout/tagout procedures, discharge static electricity with a grounding strap, and confirm the area is clear of fuel vapors before opening any dispenser electrical cabinet.

Fuel dispenser environments are classified as hazardous locations (Class I, Division 2 per NEC Article 500). Static discharge in the presence of fuel vapors creates an ignition risk. Wear a grounding wrist strap and avoid synthetic clothing that generates static charge. The OSHA lockout/tagout standard (29 CFR 1910.147) requires de-energizing the dispenser at the breaker, applying a physical lock and tag, and verifying zero voltage at the disconnect before beginning any work.

Don't forget that some board circuits carry 120VAC or higher. The power supply and driver board sections can hold lethal voltage from stored capacitor charge even after the breaker is pulled. Measure voltage at the board before touching anything. Some jurisdictions also require a hot work permit or fire watch for electrical work inside a dispenser cabinet; check local authority having jurisdiction (AHJ) requirements before starting.

Frequently Asked Questions About Fuel Dispenser Circuit Boards

Allied's parts team hears these questions regularly from technicians working on fuel dispenser circuit board issues across Gilbarco, Wayne, and Bennett equipment.

Conclusion

The core message for any fuel dispenser circuit board issue is simple: diagnose before you order. A $15 connector cleaning or a $50 power supply replacement solves many problems that look like a $400 board failure. And when the diagnosis does point to a dead board, three things determine whether the job gets done in one trip or turns into a costly back-and-forth: the exact board type, the right part number for that specific dispenser model, and whether OEM new or rebuilt exchange is the smarter buy.

Allied Electronics carries both rebuilt and OEM fuel dispenser circuit boards for Gilbarco, Wayne, and Bennett. If you're not sure which board fits your unit, the part request form puts you in touch with Allied's parts team, who can confirm compatibility and check exchange stock before anything ships.
