Fuel Dispenser LCD Replacement: Troubleshooting and Ordering

A faded pump screen does not just look bad. It quietly costs revenue every time a driver squints, walks to another island, or drives off.

Most dispenser LCDs last 5 to 10 years before temperature swings, vibration, and UV start to win. The fix is rarely a new dispenser. It is a new panel.

This guide breaks down fuel dispenser LCD replacement end to end: what causes failure, how to diagnose without overspending, how to order the exact panel, and where OEM matters versus where aftermarket is the smarter buy. For the broader dispenser parts picture, see Allied's guide to replacement parts for Gilbarco, Tokheim, and Schlumberger dispensers.

What Causes a Fuel Dispenser LCD to Fail?

Fuel dispenser LCDs fail from temperature cycling, UV exposure, and constant vibration, which break down the liquid crystal fluid over 5 to 10 years and produce fading, blank screens, bleeding, or dead segments.

Outdoor fueling equipment runs in cold mornings, hot afternoons, summer sun, winter sleet, and constant low-frequency vibration from pump operation. That is not a friendly environment for liquid crystal fluid. The polarizers degrade, the fluid migrates, and the contrast falls off long before the dispenser as a whole reaches end-of-life.

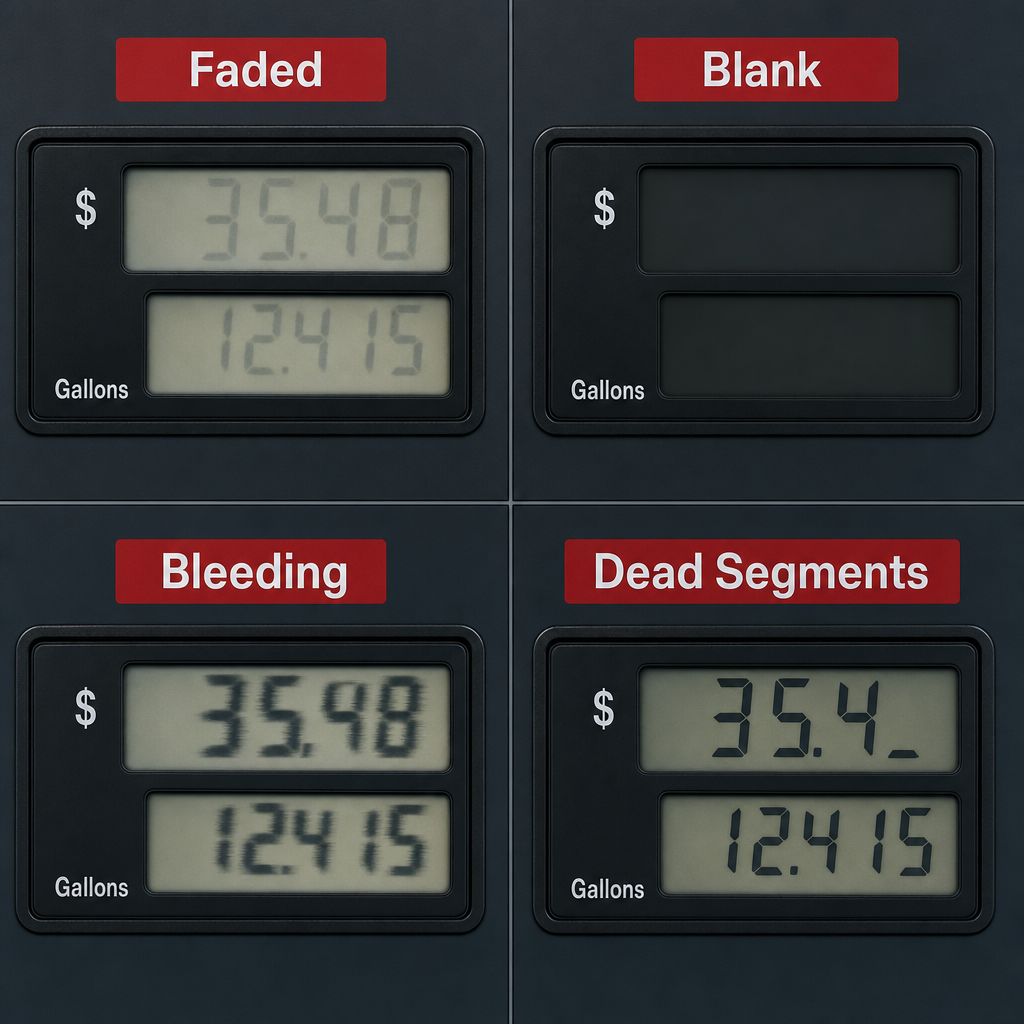

The four failure modes operators see most often are fading (price digits get harder to read in daylight), full blank (panel goes dark on power-up), bleeding or blur (segments smear into each other), and dead segments (specific digits never light, often the dollars or cents column). Each is a panel-level failure, not a software or wiring problem in most cases. By the time the symptom is visible from across the lot, the panel is already past its useful life.

LCD failure also clusters. A site that installs all its dispensers in the same year tends to see panels fail within a few months of each other. Operators who build that pattern into their parts plan stay ahead of the curve. The ones who do not end up with two or three pumps down at once on a busy weekend.

How Do You Diagnose a Failing Fuel Dispenser LCD?

Diagnose a failing dispenser LCD by checking power and ribbon connections first, then ruling out the controller and flat pack before condemning the panel itself.

A blank or partially lit panel is not always the LCD. Three other failure points produce similar symptoms, and confirming the panel before ordering saves a return trip and a wasted part.

Step 1: Confirm power at the panel

Check that the dispenser has power and that the head is communicating with the forecourt controller. If the dispenser is offline at the POS, the LCD is downstream of a bigger problem. Fix the upstream issue before pulling parts.

Step 2: Reseat the ribbon cable

The ribbon cable between the LCD and the dispenser computer is a frequent culprit. Heat cycles loosen the connector, oxidation builds on the contacts, and a panel that looks dead can come back to life after one reseat. Always check this before declaring the panel bad.

Step 3: Rule out the flat pack

Gilbarco Encore dispensers route the LCD signal through a flat pack assembly. If the flat pack is failing, the LCD may show partial output or no output, and replacing only the panel will not fix it. Swap-test with a known-good panel before ordering a new LCD if symptoms are inconsistent across both sides.

Step 4: Confirm the failure mode matches a panel issue

Faded readouts, dead segments, and bleeding are panel failures. A panel that is fully blank with healthy power and ribbon is usually a panel failure as well. A panel that flickers in time with dispenser activity is more often a power supply or board issue.

Fuel Dispenser LCD Replacement: Step-by-Step

Fuel dispenser LCD replacement takes 30 to 60 minutes per side: lock out power, open the bezel, disconnect ribbon and harness, swap the panel, reseat the ribbon, and re-test under a live transaction.

The work is not complicated, but the procedure has to be followed in order. A skipped lockout step or a stressed ribbon cable can turn a one-pump repair into a two-pump replacement.

1. Lock out power at the dispenser breaker. Verify with a meter at the head. Never assume the breaker labeling is accurate.
2. Open the dispenser bezel per the manufacturer service manual. Most Gilbarco Encore and Wayne Ovation panels are accessed from the front bezel after the head door swings out.
3. Document the ribbon cable orientation with a photo before disconnecting. Pin one is easy to flip on reassembly.
4. Disconnect the ribbon cable and any backlight harness. Release locking tabs gently; do not pull on the ribbon itself.
5. Remove the failed panel. Note any gaskets, seals, or anti-vibration foam, and replace them if they are compressed or torn.
6. Install the replacement LCD. Match the mounting holes, seat the panel evenly, and avoid overtightening fasteners against the frame.
7. Reconnect the ribbon and backlight harness. Confirm pin one alignment, then lock the connector fully.
8. Reseal the bezel with any required gaskets or weather strips. Water intrusion is the second-leading cause of a fresh LCD failing early.
9. Restore power, run a live transaction, and verify both grade and price digits. Walk around the head and check the screen from a driver's eye level at the typical approach angle.

A good test transaction also confirms the dispenser is communicating cleanly with the forecourt controller after the service interruption. For a primer on how that controller layer works, see Allied's forecourt controller guide.

How to Order the Right Fuel Dispenser LCD

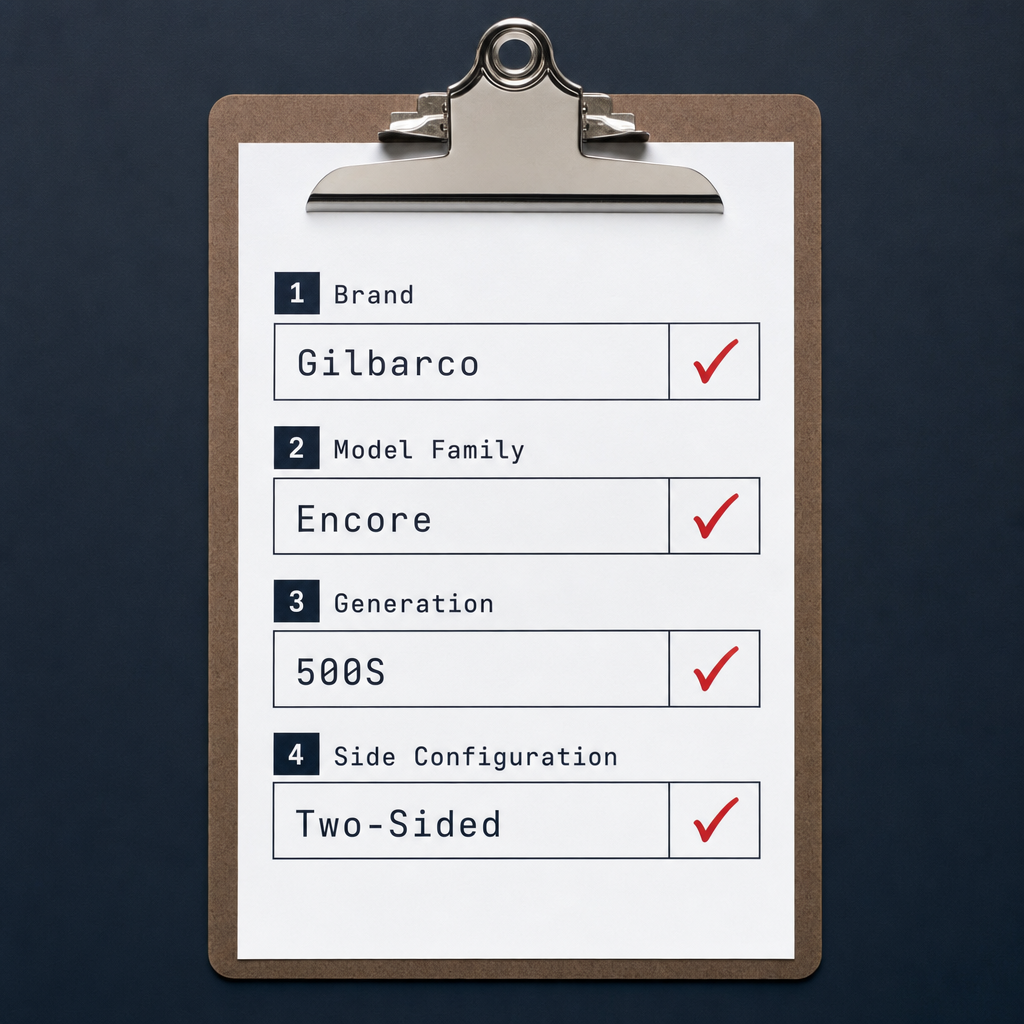

Order the right LCD by matching dispenser brand, model family, generation, and side configuration. The front face often looks similar across generations, but pinouts, mounting tabs, and ribbon connectors differ.

A panel that looks correct in the photo can still be wrong on the bench. The four data points below are the ones that matter when a supplier is pulling stock.

Operators who keep a one-page site list of every dispenser brand, model, generation, and side configuration cut their ordering time in half. The list also helps the supplier suggest substitutes when a specific panel is on backorder. Allied's parts superstore carries 57,455+ petroleum parts spanning the major brand and generation matrix.

Brand-Specific Fuel Dispenser LCD Replacement Notes

Gilbarco Encore, The Advantage, Tokheim Premier, Wayne Ovation, and Bennett Pacific Pride dispensers each use a distinct LCD assembly. Matching the exact model and generation is non-negotiable.

Gilbarco Encore (300, 500, 500S, 700S)

Gilbarco Encore LCDs are the highest-volume replacement in North American petroleum retail. Operators routinely confuse Encore 500S panels with Encore 300 panels because the front graphic overlay can look similar. The internal flat pack assembly is also a common companion replacement on older units; a screen that comes back faded after a fresh panel install often points back to a flat pack at the end of its service life.

Gilbarco The Advantage

The Advantage dispensers predate the Encore line and use a different display assembly. Aftermarket panels for The Advantage are sometimes more cost-effective than OEM because the OEM supply for an older platform is thinner. Allied stocks display assemblies for legacy Gilbarco units that the OEM channel has effectively phased out.

Tokheim Premier and Quantium

Tokheim panels look mechanically distinct from Gilbarco units. The Premier B and Premier C use different display assemblies, and Quantium 500 and 700 units add another generation gap. Older Schlumberger heads share several parts with Tokheim because of the brand lineage, but display assemblies are not always interchangeable.

Wayne Ovation and Vista

Wayne Ovation LCDs sit behind a different bezel architecture than Gilbarco. Operators replacing Ovation panels should also inspect the bezel gasket; Wayne heads can take on water faster than Gilbarco if the gasket is compromised.

Bennett Pacific Pride

Bennett dispensers, common on cardlock fleet sites, use their own LCD assemblies. Fleet sites that run Bennett heads should stock a spare panel locally because shipping windows on Bennett-specific parts can be longer than Gilbarco or Wayne.

OEM vs Aftermarket Fuel Dispenser LCDs

Aftermarket LCDs are widely accepted in petroleum maintenance because the panel is not a payment-security component. OEM only matters for card readers, EPP keypads, and encryption modules.

The split is straightforward. EMV card readers, encrypting PIN pads, and P2PE encryption hardware sit inside the PCI scope of the dispenser. Those parts should be OEM-certified to keep the certification chain intact. An LCD does not process payment data, does not hold cryptographic keys, and is not part of the EMV terminal certification, so the panel itself sits outside that constraint.

Allied positions its parts superstore around lowest-cost replacement LCDs across major dispenser brands. For sites that swap two or three LCDs per year per island, the cost delta against OEM stacks up fast.

How Much Does a Fuel Dispenser LCD Replacement Cost?

A fuel dispenser LCD replacement typically lands in the low hundreds of dollars for the panel plus 30 to 60 minutes of labor per side, well under the cost of a full dispenser head swap.

The actual landed cost depends on brand, model, generation, and whether the panel is OEM or aftermarket. Aftermarket Encore 500S LCDs can run materially below OEM list, and the gap tends to widen on older Gilbarco The Advantage and Tokheim Premier panels where OEM supply is thinner. Labor varies by site contract, but most experienced technicians complete a single-side LCD swap inside one hour once the head is open.

A few cost levers help operators control the total spend over a dispenser's life:

• Stock at least one spare panel per brand on site to avoid expedited freight on a busy weekend.
• Order LCD and flat pack together when both are near end-of-life to consolidate a service window.
• Use aftermarket for the panel and reserve OEM for the card reader and EPP, where certification matters.
• Track LCD service life per dispenser so the parts plan is data-driven, not reactive.

Compared to a full dispenser head replacement, which typically runs into the thousands, an LCD swap is a high-leverage repair. A 45-minute service interruption restores readability for another 5 to 10 years of operation under typical conditions, and weights-and-measures inspectors who follow NIST Handbook 44 will flag illegible price displays during routine checks anyway.

Frequently Asked Questions

These are the questions petroleum operators ask most often when planning a fuel dispenser LCD replacement.

Conclusion

Fuel dispenser LCD replacement is one of the few petroleum service calls that consistently moves a dispenser back to revenue inside one service window. The fix is rarely complicated, but the ordering step is where most sites waste time.

Diagnose the failure mode before ordering. Confirm brand, model family, generation, and side configuration before placing the part on a truck. Use aftermarket on the panel and reserve OEM for the card reader and EPP. Keep a spare panel per brand on site to handle weekends without expedited shipping.

For operators standardizing on a single parts source across Gilbarco, Wayne, Tokheim, and Bennett heads, a one-stop superstore cuts vendor sprawl and tightens the ordering loop. The first move is a site-level audit of dispenser brands and panel generations so the parts plan can match the actual hardware on the lot.
