Ultimate Fuel Dispenser Check Valve Guide: Types, Diagnosis, and Replacement

One worn-out fuel dispenser check valve is all it takes to choke flow from 10 GPM down to 4 GPM. That turns a 90-second fill into a 4-minute wait, and customers don't stick around for that. These are purely mechanical backflow devices, nothing like the solenoid valves that handle electronic fuel control. Let one go bad and the problems stack up fast: lost prime, air pockets in the line, sluggish flow, even safety risks when a tech opens a fitting for maintenance.

Below you'll find each fuel dispenser check valve type explained, the telltale signs of failure (before they become emergencies), PEI RP500 inspection timing, a full replacement walkthrough, and compatibility notes for Gilbarco, Wayne, Bennett, and Tokheim units.

What Does a Fuel Dispenser Check Valve Do?

A fuel dispenser check valve stops fuel from draining backward through the suction line. It holds prime pressure in the piping and blocks contamination from traveling back toward the tank.

Think of the fuel path as strictly one-directional: tank, suction piping, hydraulic section, meter, nozzle. Check valves sit at critical junctions along that path and only allow fuel to move forward. They're simple spring-loaded discs, but without them the whole column drains back the moment the submersible turbine pump shuts down.

Check valves serve three critical functions in fuel dispensing:

• Backflow prevention: Stops gravity-driven or pressure-driven fuel return toward the tank
• Prime maintenance: Keeps suction lines full of fuel so the pump does not need to re-prime on every transaction (particularly important on runs exceeding 50 feet from UST to dispenser)
• Safety during maintenance: Prevents fuel from draining back through open fittings when technicians disconnect piping

When one of these valves fails, operators face slow flow, intermittent prime loss, or uncontrolled backflow, all of which create revenue loss, compliance risk, and potential safety hazards.

What Types of Check Valves Are Used in Fuel Dispensers?

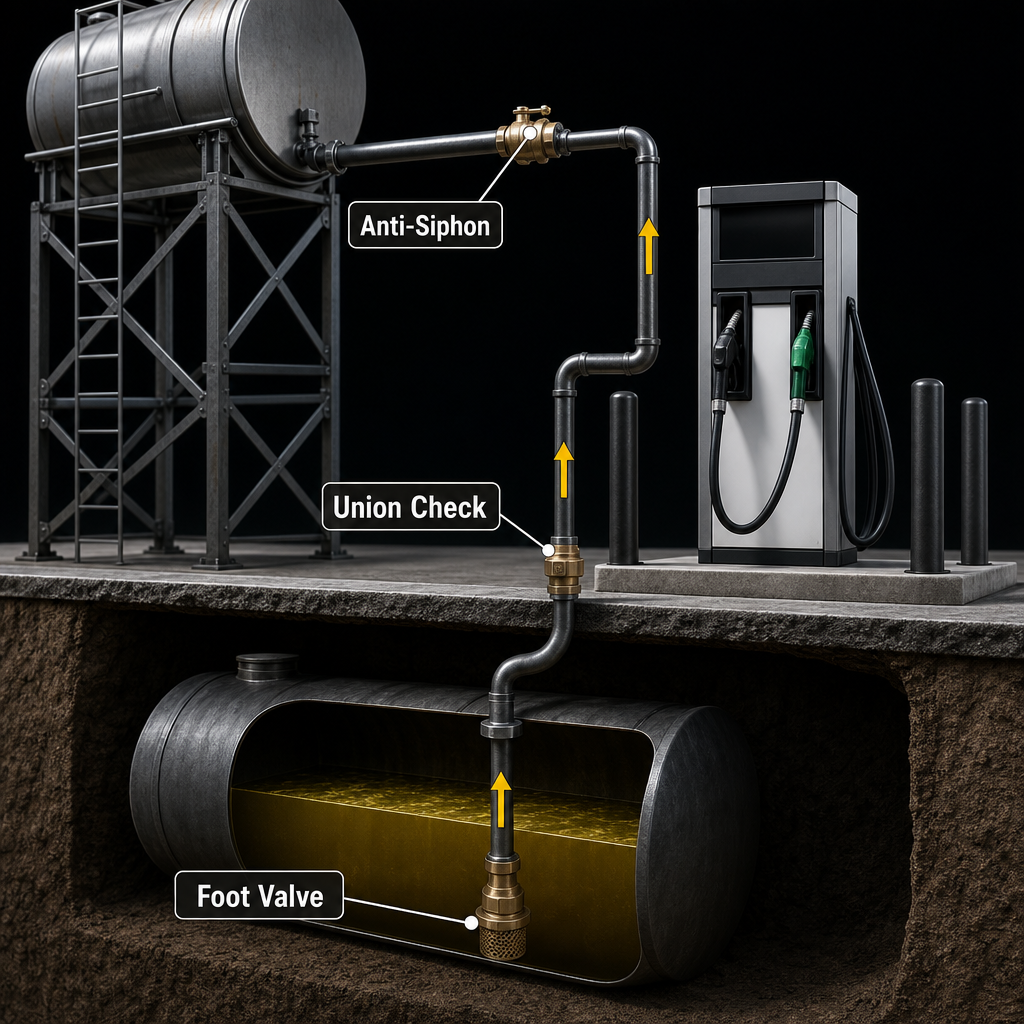

Five types show up across dispenser hydraulic systems: union, angle, vertical, foot valves, and anti-siphon valves, each installed at a different point in the piping.

Each type addresses a specific hydraulic requirement based on where it sits in the fuel delivery path. Choosing the wrong type for a given position results in restricted flow, poor sealing, or premature failure. The dispenser parts needed depend on the installation geometry and tank configuration.

What Is the Difference Between a Check Valve and an Anti-Siphon Valve?

Every anti-siphon valve is a check valve, but not every check valve qualifies as anti-siphon. The difference is the AST gravity-siphon scenario.

The anti-siphon type is built specifically for aboveground tank setups where the dispenser sits lower than the tank's fuel level.

Why does this matter? Code compliance. A standard check valve won't pass inspection where anti-siphon protection is required. Anti-siphon valves include a positive-closing mechanism rated to hold full static head pressure continuously, even with the nozzle left open or a downstream fitting cracked loose.

When Is an Anti-Siphon Valve Required?

Anti-siphon valves are required for aboveground storage tank (AST) installations where gravity head could cause uncontrolled fuel flow. If the tank's fuel level is higher than the dispensing point, gravity alone can push fuel through the system without the pump running. NFPA 30A and most local fire codes mandate anti-siphon protection in these configurations.

Underground storage tank (UST) installations typically do not require anti-siphon valves because the fuel level sits below the dispenser. Gravity works in the operator's favor, and a standard check valve provides adequate backflow protection.

How Do You Know When a Fuel Dispenser Check Valve Is Failing?

The telltale signs: slow dispenser flow, air bubbles in fuel lines, loss of suction prime requiring multiple start attempts, visible fuel weeping at the valve body, or backflow during pump-down.

Most check valve failures on dispensers are gradual. The valve does not stop working all at once. What actually happens is a slow decline over weeks or months. Seals dry out, springs lose tension, or a bit of tank sediment lodges in the seat and prevents full closure. Catching these early signs matters. A $40 valve replacement done proactively beats a full-day service call with the dispenser bagged off. If you're chasing a problem that doesn't match these symptoms, the fuel dispenser troubleshooting guide covers the full diagnostic tree.

Symptoms to Watch For

• Slow flow at the nozzle: Normal dispenser flow is 8-10 GPM. If flow drops to 4-6 GPM without a clogged filter, a partially-stuck check valve is the likely culprit.
• Air entering the fuel line: Sputtering or air pockets at the nozzle indicate the check valve is not seating completely, allowing air ingestion on the suction side.
• Loss of prime after idle periods: If the dispenser requires multiple start attempts after sitting overnight, the foot valve or nearest check valve is leaking fuel back to the tank.
• Fuel weeping at the valve body: Visible drips or wet spots around threaded connections indicate seal degradation.
• Chattering or hammering sound: A metallic rattling from the valve during operation signals partial seat failure (the disc bounces instead of holding open).
• Backflow during maintenance: If fuel runs backward through the piping when disconnecting fittings downstream, the check valve is stuck open.

How Often Should Fuel Dispenser Check Valves Be Inspected?

Once a year at minimum, per PEI RP500. Add an extra check after seasonal temperature swings and after any unexplained prime loss event.

The Petroleum Equipment Institute's RP500 provides the industry-standard framework for dispenser maintenance intervals. While no federal regulation mandates a specific check valve inspection frequency, weights and measures inspectors in many states ask for maintenance documentation during calibration visits. Keeping records of valve condition protects the operator during compliance audits.

Recommended Inspection Schedule

• Standard sites (C-stores, independent stations): Annual inspection during routine filter replacement service
• High-throughput sites (travel plazas, truck stops): Semi-annual inspection due to accelerated wear from continuous cycling
• Seasonal check: Inspect after winter-to-spring transition when thermal cycling stresses seals
• Event-driven: Inspect immediately after any unexplained prime loss, flow reduction, or air-in-line complaint

How Do You Replace a Fuel Dispenser Check Valve?

The basic sequence: lock out the dispenser, drain the line, pull the old valve, check the threads and O-ring surfaces, thread in the replacement to spec, and leak-test before going live.

Most accessible union check valves take 1-2 hours to swap. Foot valves down inside underground tanks are a different story; that's specialized equipment and a certified crew, typically half a day. After any valve replacement, downstream meter calibration should be verified since flow characteristics change with a new valve.

Step-by-Step Replacement Procedure

1. Lockout/tagout: Disconnect power at the breaker, apply lock and tag to the disconnect switch
2. Close emergency shutoff: Isolate fuel supply at the nearest emergency shutoff valve
3. Drain the line section: Capture fuel in approved containers; place absorbent pads below the work area
4. Remove the old valve: Note the flow direction arrow on the valve body before removal (check valves are directional)
5. Inspect mating surfaces: Check threads for corrosion and O-ring seats for scoring or pitting
6. Apply thread sealant: Use liquid PTFE sealant rated for petroleum (not Teflon tape on fuel-wetted NPT joints)
7. Install the new valve: Align the flow arrow with the intended fuel direction; torque to manufacturer spec (typically 25-35 ft-lbs for 1" NPT brass)
8. Bleed air: Slowly open the shutoff valve and allow fuel to fill the line section; bleed air at the highest point
9. Leak test: Observe all joints for 5 minutes under full system pressure before closing the dispenser cabinet
10. Restore and test: Remove lockout, restore power, and run the dispenser at full flow to verify normal operation

Most common installation error: Installing the check valve backward (against the flow arrow). A reversed valve blocks flow entirely, and the dispenser will not deliver fuel. Always verify the directional arrow before tightening.

Fuel Dispenser Check Valve Compatibility by Brand

Compatibility comes down to the dispenser brand, model generation, and piping configuration. Most Gilbarco, Wayne, Bennett, and Tokheim units use standard 3/4" or 1" NPT brass union check valves.

The good news for operators: check valves are one of the most interchangeable components in the dispenser hydraulic system. Thread size and material matter more than the brand name stamped on the valve body. Aftermarket valves that match the correct NPT size and seal material will function identically to OEM parts in most installations. For help identifying the right valve for a specific dispenser model, submit a part request with the dispenser make, model, and valve location.

What Check Valve Materials Work Best for Each Fuel Type?

Brass check valves handle gasoline and diesel reliably; stainless steel is required for E85 and alternative fuels; all petroleum check valves need fluorocarbon (Viton) seals rather than standard Buna-N rubber.

Choosing the wrong valve material for the fuel type is the second most common cause of premature failure (after debris contamination). A brass valve in an E85 dispenser will dezincify within 6-12 months, causing the valve body to become porous and leak. The correct material pairing extends service life from months to years. Allied stocks both brass and stainless steel valve configurations across multiple OEMs through the hydraulic components catalog.

Material Selection by Fuel Type

• Gasoline (E0-E10): Brass body with fluorocarbon (Viton/FKM) seals, 316 stainless steel spring. Standard configuration, lowest cost.
• Diesel (B0-B5): Brass body with fluorocarbon seals. Identical to gasoline spec. Buna-N seals are acceptable for diesel-only dispensers but not recommended (fails if the dispenser is ever converted).
• E85 / Flex Fuel: 316 stainless steel body with fluorocarbon seals. Brass dezincifies in high-ethanol environments, creating porosity and eventual structural failure.
• Biodiesel (B20+): Stainless steel body with fluorocarbon seals. High biodiesel concentrations attack brass alloys and swell standard elastomers.
• DEF (Diesel Exhaust Fluid): 316 stainless steel body with EPDM seals. DEF corrodes brass, copper, and zinc-containing alloys on contact.

Key rule: When in doubt, fluorocarbon (Viton/FKM) seals are safe for all petroleum fuels. Buna-N is cheaper but fails in gasoline. The seal material is the most common point of failure, and replacing the seal alone (if the valve design permits it) costs a fraction of a full valve replacement.

Frequently Asked Questions About Fuel Dispenser Check Valves

Common questions from site operators about valve selection, replacement decisions, and compliance requirements.

Conclusion

Check valves are small, inexpensive components that prevent large, expensive problems at the dispenser. A $40-$150 valve protects against lost prime, contamination backflow, slow dispenser throughput, and safety hazards during maintenance. The keys to reliable check valve performance are straightforward: choose the right type for the installation position, match the material to the fuel type, inspect annually per PEI RP500, and replace at the first sign of degraded seating.

If you're already seeing slow flow or fighting prime loss after overnight idle, don't wait for the next scheduled service visit. Get the valve replaced now; the downtime from a complete failure costs far more than the proactive fix.
