Ultimate Fuel Dispenser Solenoid Valve Replacement Guide

A single stuck fuel dispenser solenoid valve can shut down a fueling position for hours. At a busy travel plaza, that translates to hundreds of dollars in lost transactions per lane, per shift.

Solenoid valves sit behind more slow-flow and no-flow service calls than any other single component, yet most troubleshooting guides stop at "clean or replace" and leave you on your own from there. This guide picks up where those guides quit. It covers structured diagnostics (so you don't pull a good valve by mistake), lockout/tagout safety, the actual step-by-step replacement, and a brand-specific parts table for Gilbarco, Wayne, and legacy dispensers.

What Does a Fuel Dispenser Solenoid Valve Do?

A fuel dispenser solenoid valve controls fuel flow from the pump to the nozzle, opening when authorized and closing when the transaction ends.

You'll find at least one solenoid valve inside every modern dispenser. It sits in the hydraulic compartment, bolted between the filter outlet and the meter inlet. Here's what happens during a normal transaction: the POS authorizes the sale, the controller kicks 24VDC to the solenoid coil, the coil's magnetic field pulls the plunger off its seat, and fuel flows.

There are two main designs out in the field:

• Two-stage valves have a main valve that handles bulk flow and a smaller auxiliary valve that chokes down near the preset cutoff (around the 0.3-liter mark). That second stage is what keeps preset stops accurate. If you're working on a Gilbarco Encore 300 or Encore 500, it's almost certainly a two-stage design.
• Proportional valves work differently. Instead of an open/closed binary, they vary the current to the coil and modulate flow rate on a sliding scale. The Gilbarco Encore 500S and some Wayne Helix models run proportional valves for tighter flow control.

Why do they fail? Three culprits show up again and again. Coil burnout, usually from voltage spikes or prolonged overheating. Diaphragm degradation, which E10 and E15 ethanol blends speed up considerably. And plain old fouling, where tank sediment or fuel contaminants work their way into the valve seat and prevent a clean seal.

What Are the Symptoms of a Bad Fuel Dispenser Solenoid Valve?

No-flow, slow-flow, stuck-open, and inaccurate preset stops indicate solenoid valve failure from coil burnout or diaphragm wear.

Here's what each symptom usually looks like in practice:

• No flow. The dispenser authorizes, the pump runs, but nothing comes out of the nozzle. Nine times out of ten, the coil has burned open or the plunger is seized shut. It's the easiest symptom to chase down.
• Slow flow. Fuel trickles out, but you're nowhere near the normal 8-10 GPM rate. Could be a coil that's too weak to pull the plunger all the way up, a diaphragm that's swollen from years of ethanol exposure, or grit lodged in the seat. This one's tricky because clogged filters and tired submersible pumps look identical from the outside.
• Flow continues after nozzle hang-up. The customer hangs the nozzle back in the boot and fuel keeps running. That's a torn diaphragm or a contaminated seat that won't let the valve close. It's also a safety call, so pull the lane immediately.
• Inaccurate preset stops. The customer asks for $20 and gets $20.47, or the gallon count drifts past the target. On two-stage valves, the auxiliary coil has probably gone bad while the main valve still works fine.

Any of these symptoms warrant pulling the lane out of service until a technician confirms what's going on. Don't guess, test.

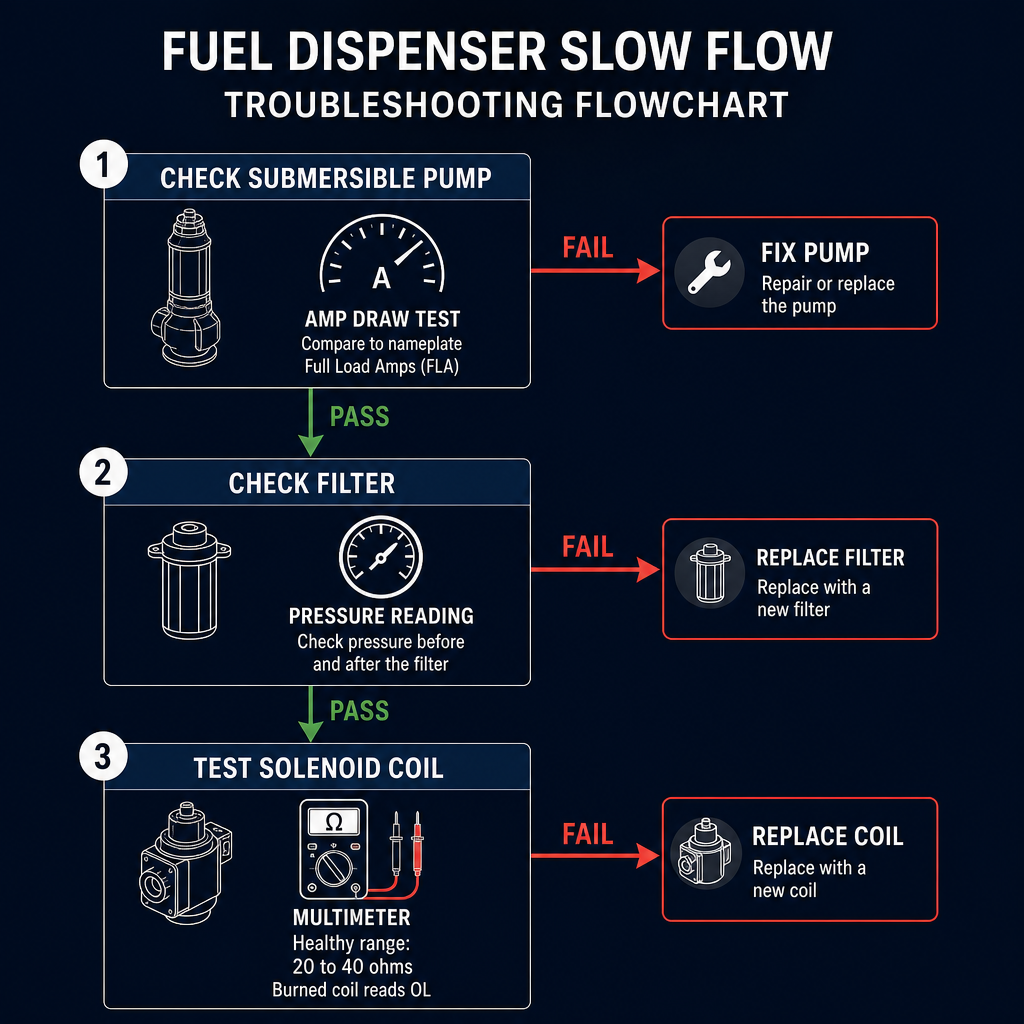

How Do You Diagnose a Faulty Fuel Dispenser Solenoid Valve?

Diagnose by checking the submersible pump and filter first, then isolating the solenoid with a listen test for the actuation click and a multimeter coil resistance reading.

Plenty of technicians jump straight to the solenoid and waste an hour pulling a valve that's perfectly good. The real problem might be upstream. Work through these checks in order:

1. Check the submersible pump. Pull the amp draw at the STP controller. If the pump isn't running, or it's drawing way outside spec, that's your culprit, not the solenoid.
2. Inspect the fuel filter. Check differential pressure across the filter housing. A plugged filter looks identical to a bad solenoid from the outside, so don't skip this. If differential pressure is out of range, swap the filter first. Allied's fuel dispenser filter replacement guide covers this step.
3. Listen for the solenoid click. Have someone authorize the dispenser while you're standing at the hydraulic compartment. A good solenoid makes a clear click when it fires. No click? That's an electrical failure, either the coil or the wiring feeding it.
4. Measure coil resistance with a multimeter. Pull the solenoid leads off and set your meter to ohms. Touch both terminals. A healthy coil sits in the 20-40 ohm range; Gilbarco two-stage coils usually land around 26-32 ohms. If you see OL (open circuit), the coil is toast. Near-zero means it's shorted.
5. Verify supply voltage. Reconnect the leads and check for 24VDC at the connector while the dispenser is authorized. Voltage present but no click? The valve itself is bad. No voltage at all? Look upstream at the wiring or control board.

If the solenoid fails steps 3 through 5, it's confirmed bad. For a broader symptom decision tree, check the fuel dispenser troubleshooting guide.

Solenoid Valve Resistance Reference

What Safety Steps Are Required Before Solenoid Valve Work?

Complete lockout/tagout at the breaker, trip the shear valve, bleed line pressure, verify zero voltage, and confirm zero energy state before work.

This procedure follows OSHA 29 CFR 1910.147 regulations for safe energy control.

This isn't a brake pad swap. Solenoid valve replacement means opening pressurized fuel lines in a space where vapor can accumulate. Cut corners on safety, and you're looking at a spill or worse. Here's the procedure:

1. Lockout/tagout. Kill power at the breaker panel. Lock it out, tag it with your name and the date, and try to authorize the dispenser to confirm it's dead.
2. Trip the shear valve. Close the impact valve at the dispenser base. That cuts the fuel supply line from the UST.
3. Bleed the pressure. Squeeze the nozzle over an approved container to drain whatever fuel is still trapped between the shear valve and the solenoid.
4. Verify zero energy. Meter the solenoid connector to confirm 0V. Then crack a fitting slowly and watch for drip or spray before fully disconnecting.
5. PPE. Nitrile gloves, safety glasses, non-sparking tools. Keep a fire extinguisher within arm's reach.

Once everything reads zero and the lines are bled, you're clear to start pulling the valve.

Fuel Dispenser Solenoid Valve Replacement: Step-by-Step

Replacement involves powering off, relieving pressure, disconnecting wiring, removing mounting bolts, swapping the valve or rebuild kit, reconnecting, leak-testing, and recalibrating the dispenser.

These steps cover most Gilbarco and Wayne dispensers. Always check the OEM service manual for exact torque specs and gasket requirements on the specific model.

1. LOTO and pressure relief. If you haven't already completed this from the safety section above, do it now. No exceptions.
2. Pull the wiring harness. Tag each wire before disconnecting, especially on two-stage valves where the main and auxiliary coils have separate leads. A photo on your phone works in a pinch.
3. Unbolt the valve. Four hex bolts on the flange for most models. Hold the valve body as you pull the last bolt so it doesn't drop and crack the fuel line fitting below it.
4. Remove the old valve. Slide it off the manifold and check the mating surfaces for nicks or corrosion.
5. Look at the valve seat carefully. This is where the rebuild-or-replace decision gets made. Smooth seat with no pitting? A rebuild kit will do the job. Corroded or visibly pitted? You need the full assembly.
6. Install the new valve or kit. Rebuilding means swapping the diaphragm, O-rings, spring, and retainer inside the existing body. Full replacement means bolting a whole new assembly in with fresh gaskets.
7. Reconnect and restore. Hook the wiring back up, pull your lockout tag, re-energize at the breaker, and open the shear valve.
8. Test it. Authorize a transaction and watch the flow rate, preset accuracy, and every fitting for leaks. Then run a meter calibration check to make sure the dispenser still meets accuracy standards.

Brand-Specific Fuel Dispenser Solenoid Valve Parts Reference

Ordering the wrong valve is an expensive mistake. Each dispenser brand and model takes a different assembly or kit, and there's no universal cross-reference. Here's what matches what:

Allied Electronics carries solenoid valve rebuild kits and full assemblies across all the brands listed above, plus a few that aren't. The petroleum parts superstore has 57,455+ SKUs in stock. If the part you need isn't listed online (common with older Bennett and Tokheim units), submit a part request and someone on the team will track it down.

For more on Gilbarco-specific part sourcing, see the Gilbarco, Tokheim, and Schlumberger replacement parts guide.

Should You Rebuild or Replace a Fuel Dispenser Solenoid Valve?

Rebuild kits cost $45-$80 for diaphragm wear; full assemblies cost $150-$350 for coil burnout or body corrosion.

When to Rebuild

Most rebuild kits come with a new diaphragm, O-ring set, spring, and retainer. They're the right call when:

• Coil resistance still reads within spec (20-40 ohms on most models)
• The valve body looks clean on the outside, no cracks, no corrosion creeping around the bolt holes
• The seat is smooth when you run a fingernail across it
• The root cause was clearly diaphragm wear or O-ring breakdown (especially common on sites running E10 or E15)

An experienced tech can knock out a rebuild in 30-45 minutes with the right kit on the bench.

When to Replace

Go with a full replacement when:

• The coil reads OL (open circuit), confirming burnout
• There's visible corrosion on the body, particularly around bolt holes or inside the fuel channel
• The seat has pitting deep enough that no new diaphragm is going to seal against it
• You've already rebuilt the same valve once and the problem came back within 6 months

Yes, the price gap is real ($45-$80 for a kit vs. $150-$350 for a full assembly). But dropping a rebuild kit into a corroded body is like putting new brake pads on a warped rotor. You'll be back in a few months doing the same job twice.

For a broader look at OEM vs. aftermarket part quality for petroleum dispensers, see OEM vs. aftermarket fuel dispenser parts.

Frequently Asked Questions About Fuel Dispenser Solenoid Valves

Technicians frequently ask about multimeter testing methods, valve types, replacement intervals, aftermarket compatibility, and stuck-open failure modes that require immediate service.

Conclusion

Solenoid valves cause more slow-flow and no-flow service calls than most technicians realize, but diagnosis and replacement follow a straightforward structured process once confirmed faulty. The good news: once you've confirmed the solenoid is the problem (not the pump, not the filter), the actual replacement is straightforward.

Check upstream first. Confirm with a multimeter. Lock out before touching anything. Then swap the valve or rebuild it, depending on what the coil and body tell you.

The brand-specific parts table above maps the correct valve or kit to each dispenser model. For any part not listed, or for help identifying the right solenoid valve for a legacy dispenser, Allied Electronics carries over 57,455 petroleum parts and can source hard-to-find components across Gilbarco, Wayne, Bennett, and other brands through the dispenser parts catalog.
