Ultimate Gilbarco Encore Error Codes: Diagnosis-to-Part Reference

Gilbarco Encore dispensers account for roughly 60% of fuel dispensers installed across North America. When one throws an error code, every minute of downtime costs revenue.

Existing Gilbarco Encore error codes references list code meanings without connecting them to the replacement parts needed to resolve the problem. Technicians end up cross-referencing manuals, parts catalogs, and tribal knowledge just to identify a single component. This guide eliminates that gap. Every major error code maps directly to a replacement part, with coverage spanning the Encore 300, 500S, 700S, and 900S.

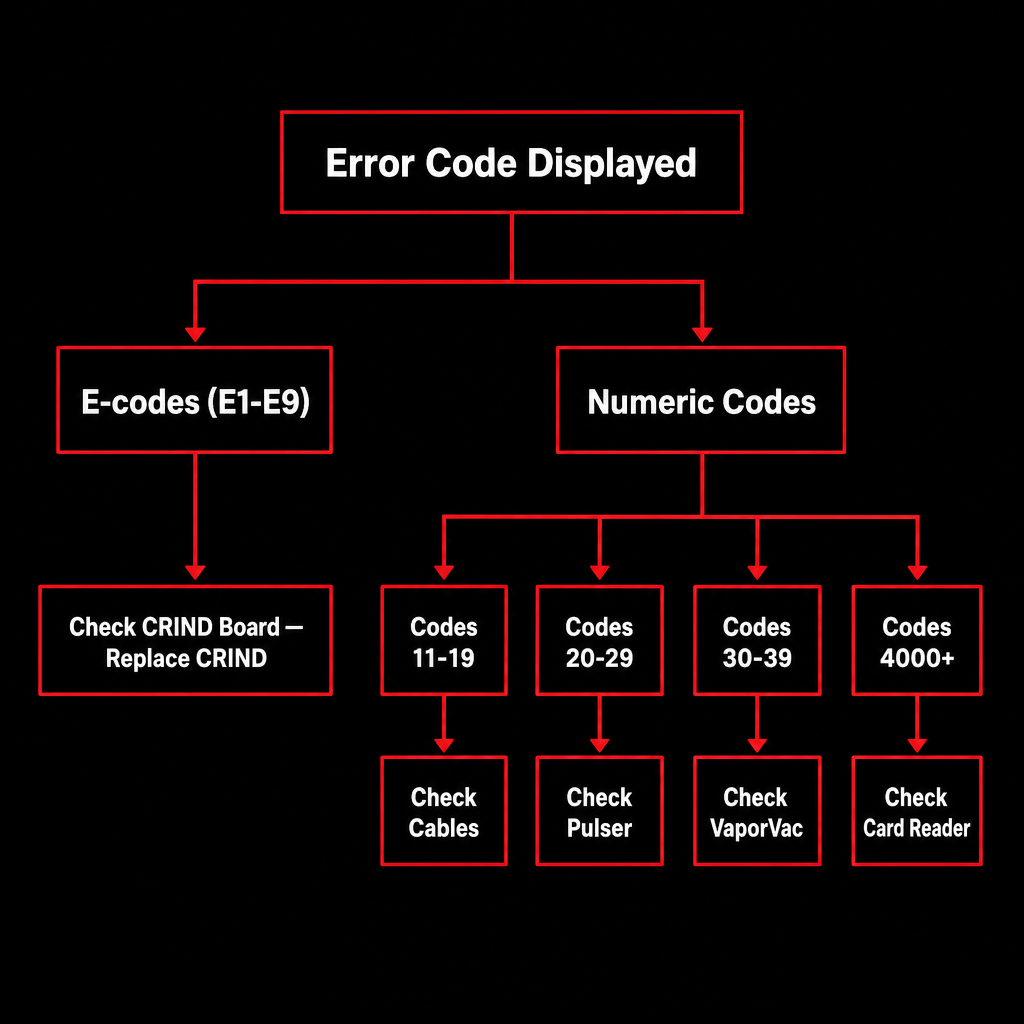

How Do Gilbarco Encore Error Codes Work?

Gilbarco Encore dispensers run a self-test sequence on power-up, cycling through hardware checks over approximately 25 seconds. Failures generate E-codes or numeric codes displayed on the CRIND unit.

During the self-test, the dispenser verifies each subsystem in sequence: CRIND board memory, display communication, card reader connectivity, meter pulser signal, valve solenoid response, and network communication with the site controller. The filling-pressure display counts down from 25, and the sequence completes when it reaches 0000. Full self-test procedures are documented in the Encore and Eclipse Series Owner's Manual (MDE-3893U).

Two distinct code systems exist. E-codes (E1 through E9) flag system-level configuration and firmware faults. Numeric codes (11 through 8050+) identify specific hardware failures in communication, metering, vapor recovery, hydraulics, and payment components.

Each code carries a severity classification: info, minor, medium, major, or supermajor. Supermajor codes disable the dispenser until resolved. Minor codes may allow continued operation with degraded functionality.

The Encore 500S and 700S share the same code architecture with over 200 documented codes. The Encore 300 uses a simpler, older code set inherited from the Advantage and Legacy platforms. Understanding which system applies to a given dispenser is the first step in accurate diagnosis.

What Are the Gilbarco Encore E-Code System Errors?

E-codes (E1 through E9) indicate system-level configuration and firmware errors that typically require a software reset, database reload, or CRIND board replacement rather than individual component swap.

E-codes E2, E6 point to CRIND board failure. E5 and E9 often trace back to unstable incoming power. E4, E7, and E8 are procedural, requiring firmware reload or configuration correction rather than hardware replacement.

What Do the Gilbarco Numeric Error Codes Indicate?

Numeric codes (11 through 8050+) identify specific hardware component failures across five major subsystems: communication, metering, vapor recovery, hydraulics, and payment devices.

Communication Codes (11-19)

Communication codes are the single most common Gilbarco Encore error codes reported in the field. Corroded underground conduit wiring accounts for the majority of codes 11 and 12. For a deeper look at forecourt communication standards and cable diagnostics, see the forecourt communication guide.

Metering and Pulser Codes (20-29)

Meter codes require careful diagnosis. Code 20 does not always mean a bad pulser. A sticking solenoid valve that prevents fuel flow can trigger the same code because the CRIND expects pulses that never arrive. For meter calibration procedures and part details, see the fuel dispenser troubleshooting guide.

Vapor Recovery Codes (30-39)

Vapor codes apply only to dispensers equipped with Stage II vapor recovery (required in CARB-regulated states and some EPA-mandated areas). Dispensers without VaporVac systems will never generate codes 30-39.

Payment and CRIND Codes (4000-5000 Series)

Card reader code 4001 is one of the most commonly misdiagnosed Gilbarco Encore error codes. The CRIND cable connecting the reader to the main board fails far more often than the reader itself. Always test cable continuity before ordering a $400+ card reader replacement. For a complete card reader diagnostic walkthrough, see the card reader troubleshooting guide.

Which Gilbarco Encore Error Codes Differ by Model?

The Encore 300 uses a simplified code set (codes 20-29 plus 4301-4317) while S-series dispensers share over 200 codes from E1 through 8050.

The critical takeaway: always confirm the dispenser model from the serial number plate before ordering parts. Encore 300 CRIND boards, displays, and card readers are physically different from S-series components. Installing the wrong generation part creates a new set of errors without resolving the original fault. Allied stocks components for all Gilbarco model generations including legacy Encore 300 and Advantage.

How Do You Read CRIND Diagnostic LEDs?

When the dispenser display is non-functional, CRIND board LEDs provide backup status through blink patterns. Steady green means normal; blinking red indicates a fault code.

Three LEDs sit on the CRIND board inside the dispenser electronics compartment:

• Power LED (green): Steady on when the board has proper voltage. Off or flickering indicates power supply fault.
• Status LED (yellow/green): Blinks during POS-to-CRIND communication. The yellow "POS to CRIND" indicator lights on each transmission from the controller.
• Fault LED (red): Blink count corresponds to error category. One blink = power subsystem issue. Two blinks = communication fault. Three blinks = peripheral device failure. Rapid continuous blinking = supermajor fault requiring immediate attention.

For situations where neither the display nor LEDs provide clear information, a Gilbarco diagnostic card (part Q12534-170) plugs into the CRIND board to force diagnostic mode. This card is compatible with Advantage and all Encore models. It bypasses normal operation and reports component status directly.

LED diagnostics become the primary tool when E2 (flash corruption) or a physical LCD failure prevents on-screen error codes from displaying. The technician opens the dispenser door, locates the CRIND board (upper electronics bay), and reads the blink pattern while the dispenser attempts its power-up sequence. For LCD replacement procedures, including display compatibility by model, see the dedicated guide.

When Is the Gilbarco Error Code Not the Real Problem?

Approximately 30% of Gilbarco dispenser service calls involve misdiagnosis where the error code points to a symptom rather than the actual failed component.

Card Reader Code Caused by a Bad Cable

Code 4001 (card reader communication failure) is the most expensive misdiagnosis. The CRIND cable connecting the card reader to the main board degrades from heat cycling and moisture exposure inside the dispenser. Cable replacement costs roughly $45. A new card reader module (M13940K901) runs over $400. Always test cable continuity with a multimeter before ordering the reader.

Display Error Caused by a Loose Connector

LCD communication errors triggered by a loose ribbon connector on the display module account for a significant portion of display-related service calls. The ribbon cable connecting the LCD to the CRIND slides out of its ZIF socket over time due to thermal expansion cycles. Reseating the ribbon takes two minutes and costs nothing. A replacement LCD module costs $200-300.

Intermittent E5/E9 Codes from Power Quality Issues

Recurring E5 (cold start forced) and E9 (hardware coldstart) codes without any component failure point to dirty incoming power. Voltage sags during peak demand, lightning-induced surges, and shared electrical circuits with high-draw equipment (compressors, car washes) all trigger forced restarts. Adding dedicated surge protection at the dispenser panel resolves the root cause. See the gas station surge protection guide for specifications.

Meter Code Triggered by a Sticking Solenoid

Code 20 (pulser disconnected) fires when the CRIND expects meter pulses that never arrive. A solenoid valve stuck in the closed position prevents fuel flow entirely, which means the meter never turns. The code blames the pulser, but the solenoid is the actual culprit. Solenoid replacement runs around $85 versus $300+ for a meter assembly.

VaporVac Error from a Pinched Hose

Codes 30-31 (VaporVac catastrophic/underperformance) trigger when vapor recovery pressure readings fall outside tolerance. Before ordering a $600+ VaporVac motor, inspect the vapor return hose from nozzle to dispenser for kinks, disconnections, or ice blockage in cold climates. A $15 hose clamp or reconnection resolves the issue in many cases.

How Do You Order the Correct Gilbarco Replacement Part?

Identify the exact dispenser model from the serial number plate located inside the main dispenser door, match the error code to the component using the tables above, then cross-reference the OEM part number with available aftermarket alternatives.

Locating the Serial Number Plate

Open the main dispenser door (front access panel). The serial number plate sits on the inside of the door or on the upper-left frame area. It lists the model code, serial number, manufacture date, and UL listing information. The model code uses a two-letter plus one-number format (e.g., "CB3" indicates an Encore 500S single-product mechanical unit).

OEM vs. Aftermarket Options

Both options exist for most high-replacement components. Card readers, LCD display assemblies, and printer modules are available in OEM and aftermarket versions. Aftermarket parts typically run 30-50% below OEM pricing with comparable reliability for non-security-critical components. For card readers specifically, OEM is recommended because encryption key injection and PCI compliance certification are tied to the manufacturer.

What Allied Stocks for Gilbarco Dispensers

Allied Electronics carries Gilbarco replacement parts across every model generation currently in service:

• CRIND boards (M01750A001 and model-specific variants)
• Card readers (M12492K903 legacy, M13940K901 current HCR2)
• LCD display assemblies (monochrome 5.7" and color units)
• Printer modules (thermal receipt printers for all Encore models)
• Power supply boards (T19760-G1)
• CRIND cables and harnesses
• Solenoid valves
• Meter assemblies and pulser sensors
• VaporVac motors
• Encore 300 and Advantage legacy components (hard-to-find parts other suppliers have discontinued)

Petroleum dealers and service companies can set up 30-day account terms through the parts superstore. For hard-to-find legacy components or bulk orders, submit a request through the part request form for pricing and availability confirmation.
