Product Details

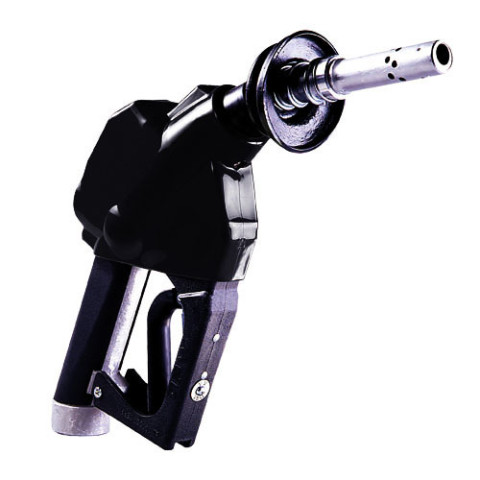

12VW Vacuum-Assist Nozzles

The OPW 12VW Series automatic nozzles are one of OPW's premium nozzles for Vacuum-Assist vapor recovery systems. Designed with an integrated vapor-valve, they are certified on the most used vapor recovery systems in the world. The 12VW is the most trusted vapor recovery nozzle in the world for the applications it is certified on including:

• Dresser/Wayne Wayne®Vac
• Gilbarco® VaporVac®
• Schlumberger
• Vacurite

Features

• UL listed for use in gasoline, diesel, and up to 10% ethanol blends.
• Prevents gasoline spills in prepay or card lock systems utilizing OPW's unique No Pressure – No Flow Device. – The nozzle cannot be opened until the pumping system is pressurized, and closes automatically when the pressure is removed.
• Prevents consumer from jamming the nozzle in an open position – Blocker on lever guard.
• FlowLock™ allows nozzle to shut-off when falling out of a vehicle, and tipped up limiting spillage and unsafe conditions.
• Vapor Escape Guard (VEG) improves vapor collection.
• Lever-activated vapor valve only opens when product is flowing controlling the amount of vapors collected from the vehicle.

Materials
