Ultimate Gilbarco Dispenser Parts Guide: Model ID and Cross-Reference

A single misidentified Gilbarco model can turn a $45 LCD order into a $200 headache. Return shipping, restocking fees, and an extra week with a pump sitting idle? That's real money walking out the door.

Here's the problem. Gilbarco Veeder-Root has built more than ten dispenser families since the 1980s, and plenty of them look alike on the outside. Pop open the door, though, and the internals tell a different story. Every online parts catalog out there just assumes you already know which model you've got on the island. Not one of them walks you through how to actually identify a Gilbarco dispenser or figure out which parts swap between families.

That's what this guide does. It covers model identification, part number decoding, cross-compatibility rules, and how to use Gilbarco's illustrated parts manuals to get the right Gilbarco dispenser parts on the first try.

Why Does Gilbarco Model Identification Matter for Parts Ordering?

Gilbarco models that look identical from the curb use different LCDs, keypads, card readers, and PC boards. Getting the model wrong means getting the part wrong.

Take the Encore 500 and the Encore 500S. Side by side on the forecourt, you'd swear they're the same dispenser. Same single-door cabinet, same general layout. But Gilbarco redesigned the LCD assembly, keypad overlay, and card reader bracket for the 500S. Order a 500-generation LCD for a 500S? It won't physically mount. You're stuck waiting for a return label.

And the bill stacks up fast. Return shipping and restocking on a wrong electronic assembly runs $50 to $150. Meanwhile, that pump isn't pumping. At a four-dispenser station during peak hours, a single down pump costs $200 to $400 per day in lost fuel margin. Stretch that to a full week and you've burned through $1,400 to $2,800 over one misidentified model.

What's surprising is that every competitor out there, GasDevs, Seneca Store, RDM Petroleum, runs a pure catalog. They all assume the buyer already knows their model and part number. For a broader look at sourcing parts across multiple brands, see Allied's guide to replacement parts for Gilbarco, Tokheim, and Schlumberger dispensers.

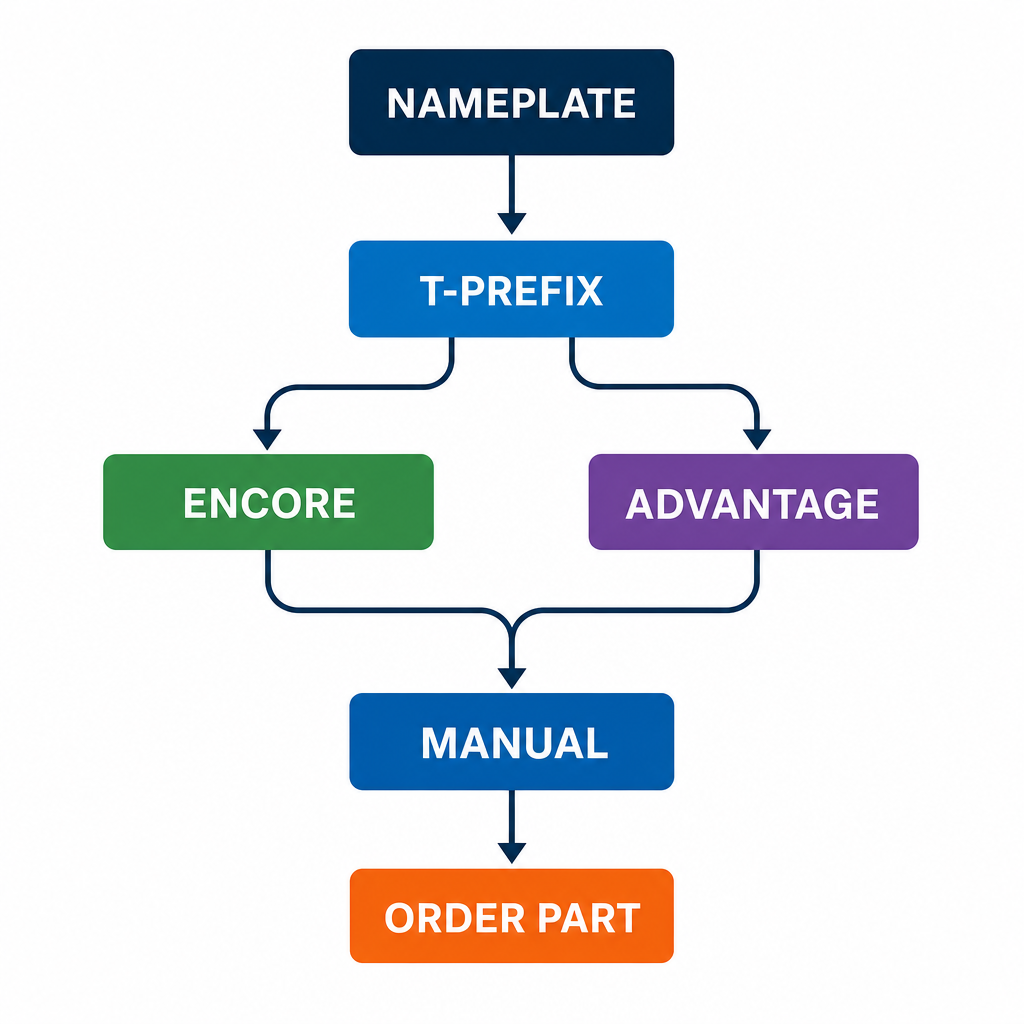

How Do You Identify Your Gilbarco Dispenser Model?

Check the nameplate on the inner door panel. It lists the model prefix, serial number, and manufacturing date.

Nameplate Location

Swing open the front door and look at the inner side of the panel, usually near the hinge. On Encore models, there's a silver or white sticker with the Gilbarco Veeder-Root logo. On older Advantage and Eclipse dispensers, it might be a riveted plate on the frame behind the door instead. Fair warning: years of paint, road grime, or door swaps can make the label hard to find, so check both the door and the inner frame if it's not immediately visible.

Model Prefix Decoding

The nameplate has a model number that starts with a letter prefix. That letter is the shortcut to identifying the dispenser family:

• T-prefix (e.g., T20354) indicates the Encore family or Highline series.
• C-prefix (e.g., C08347) indicates The Advantage or Legacy family.
• Digits following the prefix identify the configuration: number of products dispensed, suction vs. pressure hydraulics, and single- vs. multi-sided operation.

One thing that trips people up: the serial number (an 8-digit alphanumeric code) is useful when calling Gilbarco tech support or ordering electronic assemblies, but it doesn't tell you the model by itself. The model prefix is what actually matters for parts ordering.

Visual Identification When the Nameplate Is Missing

No nameplate? It happens more often than you'd think. A few visual cues can still narrow the field:

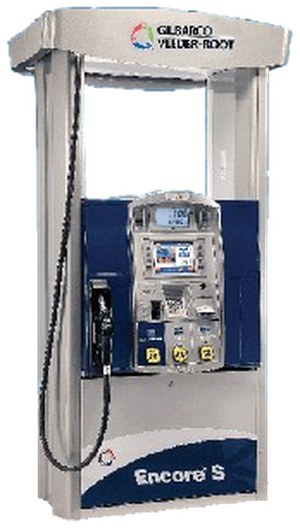

• Encore 300/500/500S: Single-door design with a flat keypad surface and a separate card swipe slot. The 500S has a slightly recessed card reader area compared to the original 500.

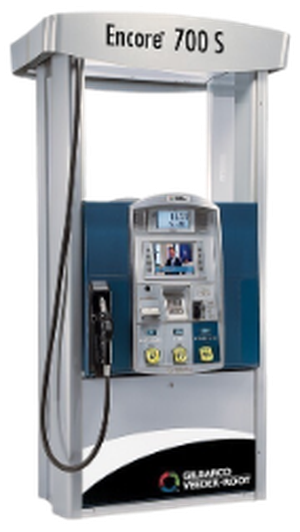

• Encore 700S: Wider body with an angled integrated payment terminal that combines the screen, keypad, and card reader into one unit.

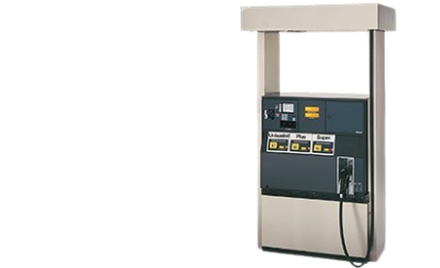

• The Advantage: Distinctive rounded top cap and wider frame. Easily distinguished from any Encore model.

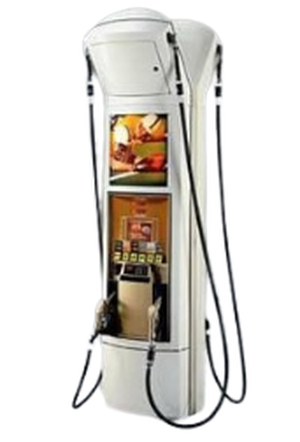

• Eclipse: Sleeker body with a more angular design than The Advantage, produced in the late 1990s.

For additional visual references, Allied's dispenser parts reference manuals include assembly diagrams that can help match a dispenser's appearance to a specific model family.

What Are the Major Gilbarco Dispenser Families?

There are more Gilbarco families than most operators realize: Encore 300, 500, 500S, 700S, 900S, The Advantage, Eclipse, Highline, Legacy, and G-SITE. That's ten distinct product lines spanning four decades.

Three models dominate today's forecourts. The Encore 500S is the workhorse you'll find at most C-stores. The Encore 700S is Gilbarco's flagship, with its integrated payment terminal built right into the face of the unit. And the Encore 900S handles high-flow commercial and truck stop applications. That said, thousands of older Encore 500s, Encore 300s, Advantages, and Eclipses are still pumping fuel every day across North America. They all need parts too.

Here's a breakdown of every major Gilbarco family, its approximate era, and what's available for it now. For current stock, browse Allied's Gilbarco Encore parts catalog.

Which Gilbarco Parts Are Cross-Compatible Across Models?

Good news first: filters, nozzles, hoses, and receipt paper generally work across every Gilbarco family. The bad news? LCDs, keypads, card readers, and PC boards are locked to specific models.

Universal Parts (Safe to Order Without Exact Model)

These are the "safe bet" components that work across all Gilbarco dispensers:

• Fuel filters from Cim-Tek and PetroClear fit standard filter heads regardless of dispenser model.
• Nozzles from Husky and Catlow use industry-standard 3/4" inlet connections.
• Hoses, swivels, and breakaway valves follow NPT thread standards across all models.
• Receipt/thermal paper rolls share standard dimensions across Encore generations.

Model-Specific Parts (Must Match Exact Family)

This is where things get tricky, and where most ordering mistakes happen. An Encore 500 card reader won't fit a 500S. Period. And the 700S payment terminal assembly? It's a completely unique unit with no equivalent in any other Gilbarco model. For a deeper look at choosing between OEM and aftermarket for these components, see the OEM vs. aftermarket fuel dispenser parts guide.

• LCD/display assemblies vary in size, connector type, and mounting between every generation.
• Keypad overlays use different cutout patterns and ribbon cable connections per model. For replacement procedures, see Allied's fuel dispenser keypad replacement guide.
• Card reader assemblies differ in form factor between the 500, 500S, and 700S. EMV-capable readers must also meet PCI Security Standards Council requirements, adding another layer of model specificity.
• CRIND boards and main PC boards are model-locked and revision-specific.
• Power supply units vary in voltage output and connector layout. For LCD-specific troubleshooting and sourcing, see the fuel dispenser LCD replacement guide.

Partially Compatible Parts (Verify Before Ordering)

This is the gray area that catches experienced technicians off guard. Meter assemblies, for instance, swap between some Encore generations just fine, but they're completely different from Advantage-era meters. Door panels? Some overlap between the 500 and 500S, but not all configurations. If you're not 100% sure a part crosses over, don't guess. Pull up the illustrated parts manual, match the callout numbers, and confirm before adding it to the cart.

How Do You Decode a Gilbarco Part Number?

Gilbarco part numbers use a letter prefix to identify the component category and a suffix to indicate model revision.

Here's what the opening letter tells you about the component:

• T-prefix numbers (e.g., T19xxx-series) typically refer to electronic assemblies such as CRIND boards, display driver boards, and power supplies.
• M-prefix numbers generally designate meter and hydraulic components.
• Q-prefix numbers often identify hydraulic assemblies and plumbing components.

Don't ignore the tail end. Those last few digits or letters? They flag which generation a part fits. It's not unusual to see two part numbers that differ by a single letter at the end, and they'll go into completely different board revisions. "Almost the right number" still means the wrong part on the bench. Match every character.

Cross-Referencing OEM Numbers to Aftermarket Equivalents

Allied's illustrated parts manuals list the OEM part number for every callout in the exploded-view diagram. That OEM number is the universal cross-reference key. Search Allied's parts catalog by the OEM number to find both original and aftermarket equivalents.

When the Part Number Does Not Appear in the Manual

Older manuals may not reflect revision updates. If the number printed on the component does not match anything in the manual, photograph the part showing any visible labels and submit the image through Allied's part request form. The parts team can typically identify the correct replacement from a photo and the dispenser serial number.

What Are the Most Common Gilbarco Replacement Parts by Model?

The most common Gilbarco replacements are LCDs, keypad overlays, card readers, CRIND boards, filters, and nozzles.

Ask any petroleum service tech and you'll hear the same list regardless of model. The part numbers change from one dispenser family to the next, but the things that break? Pretty much identical.

Encore 500S (Highest Volume)

There's a reason the 500S dominates the parts conversation. It's the most widely installed Gilbarco dispenser in North America. The components that go most often: LCD display assembly, keypad overlay, card reader (mag stripe and EMV), CRIND board, power supply, and receipt printer assembly.

Encore 700S

The 700S is a different animal when it comes to parts. Its integrated payment terminal bundles the screen, keypad, and card reader into one sealed unit, so there's no swapping individual pieces like you can on a 500S. When something goes wrong with the payment interface, the whole terminal assembly gets replaced. Other common 700S parts orders: main display, receipt printer, hydraulic assembly, and metering components.

Legacy Models (Advantage, Eclipse)

Operators running Advantage or Eclipse dispensers know the struggle. The most requested parts for these older models are LCD flat packs, door assemblies, hydraulic seal kits, and meter assemblies. Allied still stocks these even though Gilbarco's own supply has largely dried up. Browse the full Gilbarco Encore parts catalog or the broader dispenser parts inventory for current availability.

How Do You Use Illustrated Parts Manuals for Gilbarco Dispensers?

Each manual page pairs a numbered callout diagram with a parts table listing OEM number, description, and quantity.

Pick up the PT-1936S (Encore series) or PT-1728Q (Advantage series) and flip to any section. The top half of each page shows an exploded-view drawing. Little numbered callout lines fan out from the diagram, pointing at every nut, board, and bracket in the assembly. Then, below the drawing, there's a lookup table. Find your callout number in the left column, and the table gives you the OEM part number, a plain-English description, and how many of that part sit inside each dispenser.

Step-by-Step: Using the Manual to Order Parts

1. Open the correct manual for the dispenser model (available on Allied's reference manuals page).
2. Navigate to the section matching the failed component area: electronics, hydraulics, outer shell, or meter.
3. Find the component in the exploded-view diagram and note its callout number.
4. Look up the callout number in the parts table below the diagram. Record the full OEM part number.
5. Search Allied's catalog by that OEM part number, or submit a part request if the number does not return a result.

Allied hosts over 20 illustrated parts manual PDFs covering Gilbarco Encore, Advantage, Eclipse, Wayne, Tokheim, and Schlumberger models. No other petroleum parts distributor makes this kind of cross-reference documentation available online. The dispenser parts reference manuals page is organized by manufacturer and model for fast access.

Where Can You Find Parts for Legacy Gilbarco Models?

Parts for discontinued Gilbarco models like The Advantage and Eclipse come from aftermarket specialists, not the OEM.

Once Gilbarco stops making a dispenser family, parts don't just get harder to find. They become a treasure hunt. The Advantage and Eclipse haven't rolled off a production line in years, and the OEM pipeline has all but closed. That leaves aftermarket specialists and rebuilt/exchange programs as the go-to sources.

Gilbarco stopped manufacturing The Advantage, Eclipse, Highline, and Legacy dispensers years ago. Call Gilbarco directly for an Advantage-era LCD flat pack or an Eclipse electronic assembly and you'll likely hear "no longer available." It's frustrating, but it's the reality of maintaining equipment that's 20+ years old.

Allied Electronics keeps aftermarket and rebuilt stock specifically for these orphaned models. With over 57,455 SKUs in the parts superstore, that includes LCD flat packs, electronic assemblies, hydraulic kits, and door hardware for Advantage and Eclipse dispensers that other suppliers have dropped entirely.

Rebuilt and Exchange Parts

Here's where rebuilt/exchange programs really shine. CRIND boards and power supplies carry hefty OEM price tags, and paying full price for a part going into a dispenser that might get replaced in two or three years doesn't always pencil out. Rebuilt/exchange programs deliver the same performance at 30% to 50% less, which makes a lot more sense for aging equipment. For a full comparison of when to use OEM versus aftermarket components, see the OEM vs. aftermarket fuel dispenser parts guide.

Frequently Asked Questions About Gilbarco Dispenser Parts

These are the questions Allied's parts team answers most frequently from fuel station operators sourcing Gilbarco components.

Conclusion

Getting Gilbarco dispenser parts right comes down to one thing: knowing exactly which model you're working on before you place the order. Check the nameplate, read the prefix, match it to the family. That's the whole process.

Here's what to remember:

• Always confirm the model prefix before ordering. Never assume two similar-looking dispensers share parts.
• Universal parts (filters, nozzles, hoses) are safe bets. Electronics (LCDs, keypads, card readers, PC boards) are model-locked.
• Illustrated parts manuals are the definitive cross-reference tool for matching callout numbers to OEM part numbers.
• Legacy Gilbarco models still need parts. Allied stocks Advantage, Eclipse, and other discontinued families where OEM supply has ended.

For Gilbarco error codes and diagnostic troubleshooting before ordering replacement components, see the companion Gilbarco Encore error codes guide.
