ANDI Dual Dispenser Interface

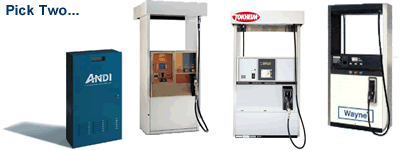

The ANDI is now capable of supporting two dispenser brands at the same location.
The dispenser communication channels are divided into primary and secondary channels. The primary channel (CH-5) can support up to 16 fueling positions with in-dispenser card readers supported on channel 7 (CH-7). The secondary channel (CH-6) can support up to 16 fueling positions. Currently, there is no in-dispenser card reader support for the dispensers on channel 6.
The ANDI currently supports the following configurations:
| Primary Channel 5 |
Secondary Channel 6 |
| (16 FP with in dispenser card readers) |
(16 FP without in dispenser card readers) |
| |
|
| Gilbarco |
Tokheim |
| Tokheim |
Gilbarco |
| Wayne |
Gilbarco |
| |
|
| Other combinations are available upon request. |
For pricing and availability please call toll free 1-800-223-3619
or (In Pennsylvania 215-785-6200). Ask for Al Magro
